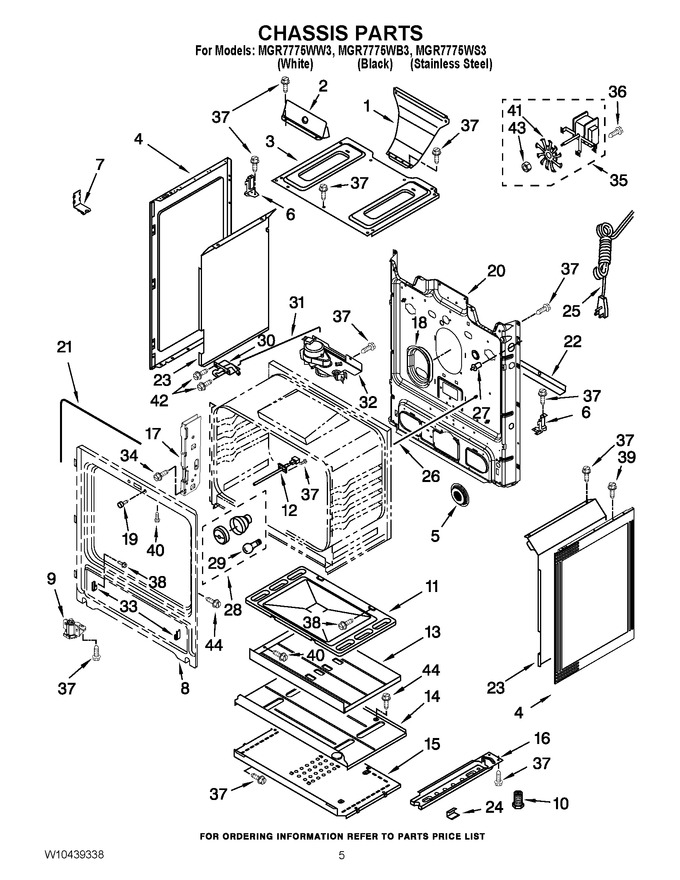

04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Flue Box (Replaces: W10153186) |
|
$ 150.29 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 70.96 | |||||
| 3 | W11379351 | Burner, Box (Replaces: 8273036) |
|
$ 61.13 | |||||
| 4 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 164.83 | ||||
| 5 | WPW10134124 | Cover, Fan (Replaces: W10134124) |
|
Immediately | $ 97.70 | ||||
| 6 | 8523249 | Brkt, Manifold Mtg |
|
- | |||||
| 7 | W10137382 | Clip, Mounting |
|
Immediately | $ 46.11 | ||||
| 8 | N/P | Frame, Front (not Serviced) |
|
- | |||||
| 9 | WPW10341186 | Assembly, Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 10 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.85 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 220.05 | |||||
| 12 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 13 | 8053967 | Baffle, Burner |
|
$ 300.91 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 107.66 | |||||
| 15 | 8053968 | Shield, Lower |
|
- | |||||
| 16 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 59.68 | |||||
| 17 | W10647259 | Bracket, Mounting (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 18 | W10134126 | Bracket, Fan |
|
$ 22.84 | |||||
| 19 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 53.39 | ||||
| 20 | W10416101 | Back, Main |
|
- | |||||
| 21 | W11542153 | Seal, Oven (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 22 | W10387695 | Brace, Main Back |
|
- | |||||
| 23 | 9761449 | Retainer, Insul. (left Hand) |
|
$ 317.63 | |||||
| 23 | 9761448 | Retainer, Insul. (right Hand) |
|
- | |||||
| 24 | W10137382 | Clip, Panel |
|
Immediately | $ 46.11 | ||||
| 25 | W11582239 | Cord, Power (Replaces: 9757891) |
|
$ 16.75 | |||||
| 26 | 9757239 | Rod - Dr Switch |
|
$ 91.78 | |||||
| 27 | 9757238 | Switch, Door |
|
$ 64.08 | |||||
| 28 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 30 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 244.15 | |||||
| 31 | W10078370 | Rod, Latch |
|
$ 90.70 | |||||
| 32 | WPW10107830 | Latch-mtr (Replaces: W10107830) |
|
$ 323.31 | |||||
| 33 | WPW10114344 | Glide, Drawer (Replaces: W10114344) |
|
Immediately | $ 8.16 | ||||
| 34 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 35 | W10794440 | Fan Motor, Conv (Replaces: W10167915) |
|
Immediately | $ 316.48 | ||||
| 36 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.19 | ||||
| 37 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 38 | W10379120 | Screw |
|
- | |||||
| 39 | WP3196175 | Screw (white) (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 40 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| 41 | W10758272 | Fan Blade (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 42 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 43 | W11548755 | Nut (Replaces: W10213748) |
|
$ 14.47 | |||||
| 44 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 7.75 | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 117.75 | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 116.89 |
