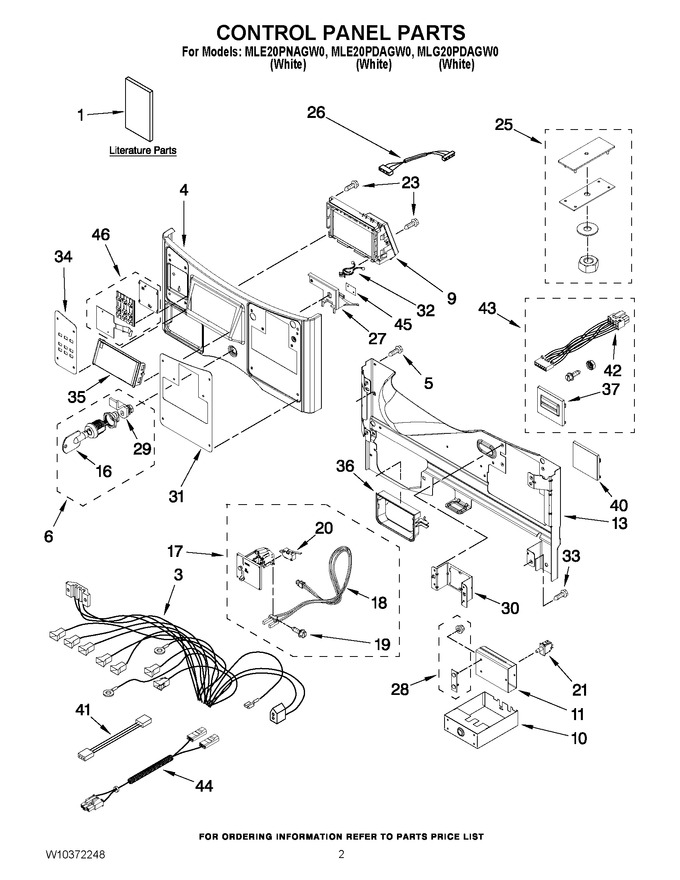

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404629 | Tech Sheet |
|
- | |||||
| 1 | W10335469 | Installation Instruction (mlg20pdagw0) |
|
- | |||||
| 1 | W10372248 | Parts List |
|
- | |||||
| 1 | W10335466 | Installation Instruction (mle20pdagw0 & Mle20pnagw0) |
|
- | |||||
| 3 | W10423411 | Harness, Main (mle20pnagw0 & Mle20pdagw0) |
|
- | |||||
| 3 | WPW10423412 | Harness, Main (mlg20pdagw0) (Replaces: W10423412) |
|
$ 249.45 | |||||
| 4 | W10198203 | Panel Assembly (pd) |
|
- | |||||
| 4 | W10198204 | Panel Assembly (pr) |
|
- | |||||
| 5 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 6 | W11231586 | Service & Programming Lock (Replaces: W10198223) |
|
- | |||||
| 9 | W10827636 | Techbox Assembly (pr) (Replaces: W10198220) |
|
$ 270.26 | |||||
| 9 | W10827410 | Techbox Assembly (pd) (Replaces: W10198219) |
|
Immediately | $ 953.99 | ||||
| 10 | W11204019 | Coin-box (Replaces: W10133248) |
|
$ 156.05 | |||||
| 11 | W11204020 | Vault-body Assembly (Replaces: W10133258) |
|
$ 401.64 | |||||
| 13 | W10198321 | Console Bracket |
|
- | |||||
| 16 | WPW10114740 | Key, Access Door (Replaces: W10114740) |
|
$ 130.94 | |||||
| 17 | WPW10133242 | Coin Drop Assy. (Replaces: W10133242) |
|
$ 126.51 | |||||
| 17 | W11643135 | Coin Drop Assy. (Replaces: W10133245) |
|
$ 568.97 | |||||
| 18 | W10247388 | Coin Sensor Assy, Coin 2 (black) |
|
- | |||||
| 18 | WPW10247389 | Coin Sensor Assy, Coin 1 (white) (Replaces: W10247389) |
|
Immediately | $ 115.90 | ||||
| 19 | WP3395530 | Screw, 6-20 X 1.00 (Replaces: W10142655) |
|
$ 7.70 | |||||
| 20 | W10133281 | Service Access, Switch |
|
- | |||||
| 21 | WPW10131838 | Switch - Vault & Service Door (Replaces: W10131838) |
|
$ 23.91 | |||||
| 23 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10192860) |
|
Immediately | $ 7.19 | ||||
| 25 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 126.00 | |||||
| 26 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 31.12 | |||||
| 27 | W10198375 | Support-console |
|
- | |||||
| 28 | W10159907 | Mounting Strap, Weld Assembly |
|
- | |||||
| 29 | W10233256 | Cam-lock |
|
$ 73.54 | |||||
| 30 | WPW10198323 | Bracket (pn) (Replaces: W10198323) |
|
$ 22.77 | |||||
| 30 | W10198322 | Bracket (pd) |
|
- | |||||
| 31 | W10198336 | Fascia (mle20pnagw0) |
|
$ 283.20 | |||||
| 31 | W10198334 | Fascia (mle20pdagw0 & Mlg20pdagw0) |
|
$ 123.03 | |||||
| 32 | 8019P013-60 | Clip, Nylon |
|
$ 14.95 | |||||
| 33 | WPW10131119 | Screw,8-18 X 1/2 (Replaces: W10386302) |
|
$ 6.95 | |||||
| 34 | W10198284 | Fascia-buttons (Replaces: W10198330) |
|
$ 186.24 | |||||
| 35 | W10198390 | Window Display |
|
$ 82.34 | |||||
| 36 | W10198345 | Collar, Dispenser |
|
- | |||||
| 37 | WPW10198367 | Bezel-pr (Replaces: W10198367) |
|
$ 23.36 | |||||
| 40 | W10198366 | Cover Pd/pn |
|
- | |||||
| 41 | W10342230 | Cable Set, Ui To Ccu Communication |
|
- | |||||
| 42 | WPW10239515 | Card Reader, Harness (Replaces: W10239515) |
|
$ 147.79 | |||||
| 43 | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 74.38 | |||||
| 44 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 45 | W10151156 | Shield, Sensor Switch |
|
- | |||||
| 46 | WPW10198198 | Button Set, Assembly (Replaces: W10198198) |
|
$ 232.25 |
