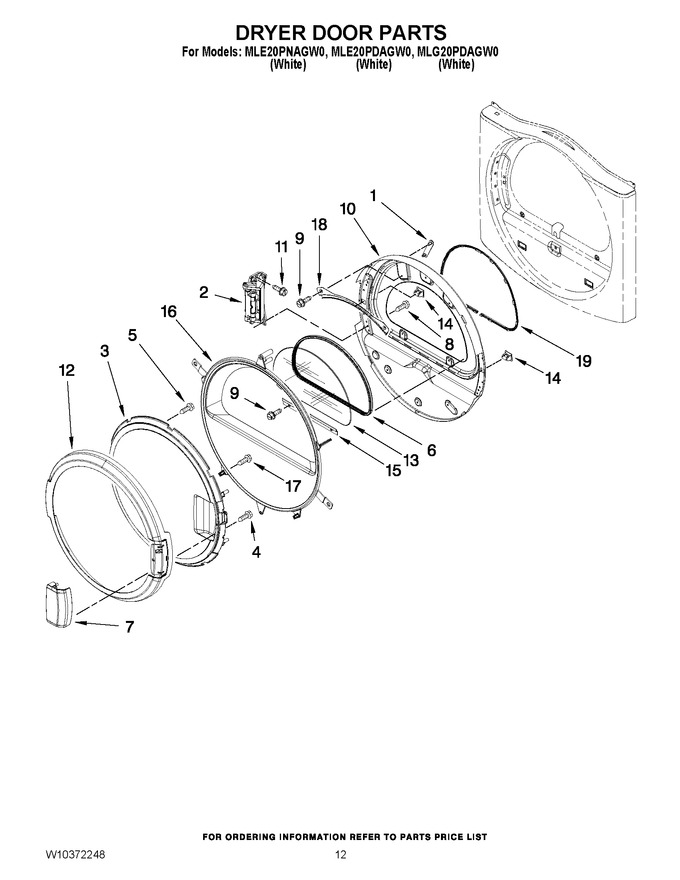

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565119 | Hinge Hole Cover (inner Door) |
|
$ 93.64 | |||||
| 2 | W11628813 | Door Hinge Assembly (pn) (Replaces: W10198424) |
|
$ 143.75 | |||||
| 2 | WPW10304672 | Door Hinge Assembly (pd) (Replaces: W10304672) |
|
Immediately | $ 221.41 | ||||
| 3 | W11700543 | Assembly, Door Intermediate (Replaces: W10137467) |
|
$ 269.61 | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 5 | 3400618 | Screw, 6-32 X 3/8 |
|
$ 64.70 | |||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 26.88 | |||||
| 7 | W10850397 | Handle, Door (Replaces: W10112976) |
|
$ 34.76 | |||||
| 8 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 7.68 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.68 | |||||
| 10 | WPW10164062 | Door Assembly (inner) (includes Illus. 1,14 & 19) (Replaces: W10164062) |
|
$ 337.21 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.67 | |||||
| 12 | W11721374 | Door, Outer Ring (pn) (Replaces: W10198431) |
|
$ 97.70 | |||||
| 12 | W11661105 | Door, Outer Ring (pd) (Replaces: W10112916) |
|
$ 171.10 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 261.68 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 15 | W10822054 | Retainer (lower) (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 16 | WP8580059 | Door, Intermediate (Replaces: 8580059) |
|
$ 102.38 | |||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 18 | 8519356 | Retainer (upper) |
|
- | |||||
| 19 | WPW10407973 | Door Seal (Replaces: W10407973) |
|
$ 116.37 |
