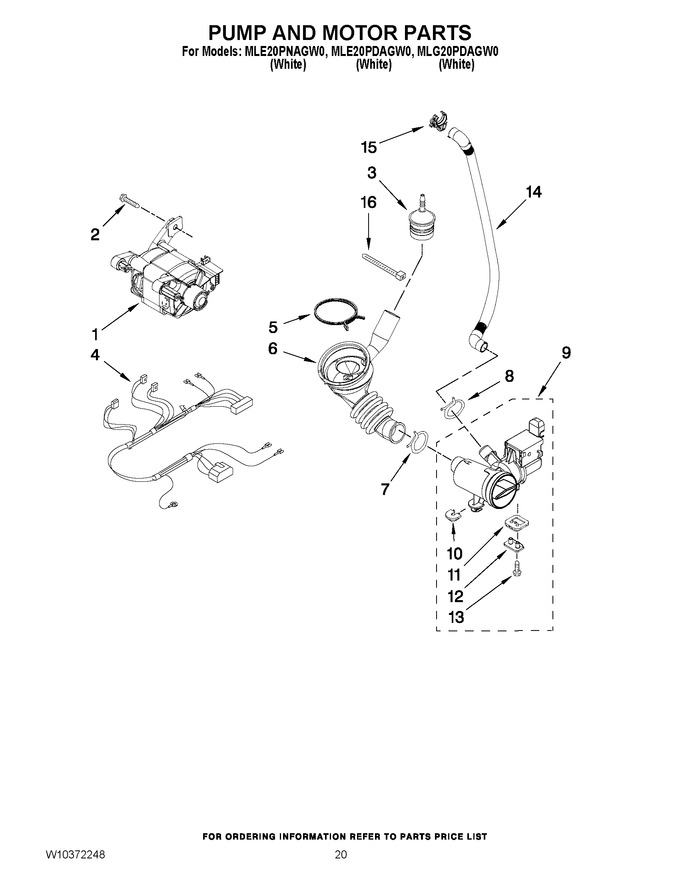

12 - Pump And Motor Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11191299		Motor, Drive   (Replaces: W10171927)				$ 456.72
2	8540134		Bolt, Motor				$ 14.12
3	WPW10405608		Air Trap (includes Item 16)   (Replaces: W10405608)			Immediately	$ 7.91
4	W10364668		Harness, Motor		Appelez-nous	-
5	WP696392		Clamp   (Replaces: W10273037)				$ 9.08
6	W11366249		Hose, Tub To Pump   (Replaces: 8540012)			Immediately	$ 51.94
7	W10273036		Clamp, Hose				$ 16.28
8	WP356138		Clamp, Drain Hose   (Replaces: 356138)			Immediately	$ 8.52
9	W11129524		Pump (complete)   (Replaces: W10183441)				$ 131.33
10	W10034820		Foot, Rubber (slider)   (Replaces: W10191886)				$ 13.43
11	W10191880		Foot, Rubber (lock)		Appelez-nous	-
12	8540033		Cap, Lock Foot   (Replaces: W10190649)				$ 18.88
13	8533964		Screw, 10-16 X 1.25   (Replaces: W10167905)				$ 12.60
14	WPW10272563		Hose, Drain- Inner   (Replaces: W10272563)				$ 30.71
15	8182209		Retainer, Drain Hose   (Replaces: W10003290)				$ 21.60
16	WP2262071		Cable Tie   (Replaces: 2262071)				$ 9.24
