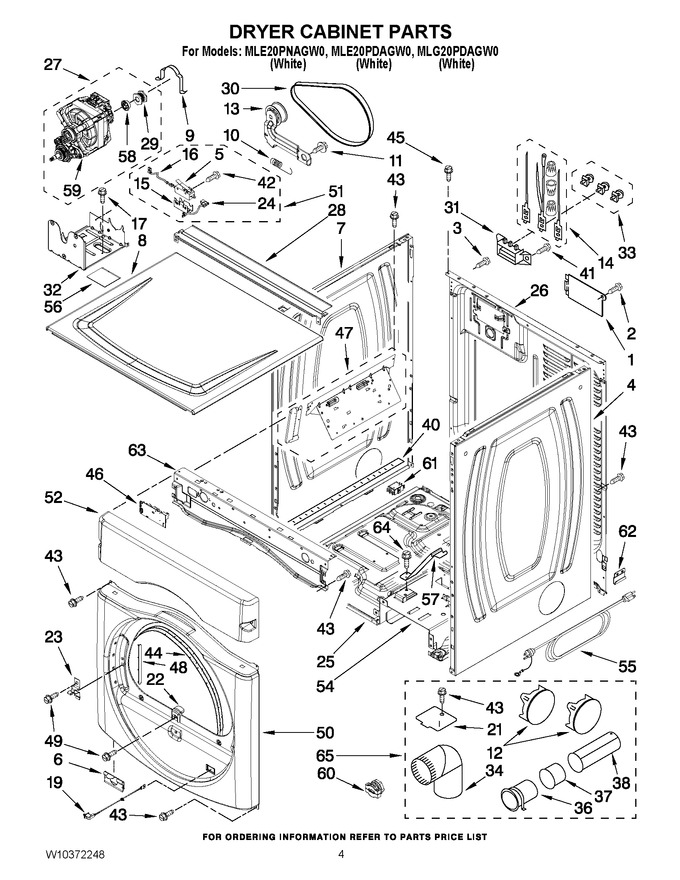

02 - Dryer Cabinet Parts


03 - Bulkhead And Blower Parts


04 - Dryer Heating Parts - Electric


05 - Dryer Heating Parts - Gas


06 - W10096909 Burner Assembly


07 - Dryer Door Parts


08 - Washer Door Parts


09 - Washer Cabinet Parts


10 - Dispenser Parts


11 - Tub And Basket Parts


12 - Pump And Motor Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 333.89
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 333.89
8	WPW10336080		Top   (Replaces: 8563730)				$ 316.18
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WPW10344192		Idler Assembly   (Replaces: W10344192)			Immediately	$ 90.07
14	279318		Terminal, Brass & Tinned (3) (includes Item. 33 )			Immediately	$ 100.99
15	8564011		Bracket, Switch				$ 18.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
19	W11192375		Assembly, Door Switch   (Replaces: W10251066)		Appelez-nous	-
21	WPW10354249		Cover, Plate   (Replaces: 8066115)				$ 8.96
22	8565083		Ramp, Door		Appelez-nous	-
23	WP8565122		Strike, Door (1)   (Replaces: 8565122)			Immediately	$ 8.65
24	8539892		Wire Motor (to Belt Switch)		Appelez-nous	-
25	W11116960		Base, Cabinet (pd (coin Drop))   (Replaces: W10198309)		Appelez-nous	-
25	W11215531		Base, Cabinet (pr (card Reader))   (Replaces: W10225178)				$ 347.96
26	W10225180		Panel, Rear		Appelez-nous	-
27	W10416574		Motor Assembly 60 Hz.   (Replaces: W10289662)				$ 332.50
28	W10198224		Bracket, Water Channel		Appelez-nous	-
29	W10167237		Pulley		Appelez-nous	-
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
34	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 26.82
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
40	WP8318396A		Seal, Foam-iec   (Replaces: 8318396)				$ 37.82
41	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
42	3400934		Assembly, Screw & Insulator		Appelez-nous	-
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	WPW10166380		Control Board   (Replaces: W10166380)				$ 156.89
47	WP8563727		Control Bracket   (Replaces: 8563727)				$ 171.13
48	8565043		Plug, Strip Front Panel				$ 92.66
49	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	W10255282		Front Panel (includes Illus. 44)		Appelez-nous	-
51	W11236387		Switch, Assembly   (Replaces: W10259136)		Appelez-nous	-
52	W11314861		Enclosure, Ccu Assembly   (Replaces: W10198379)		Appelez-nous	-
54	W10133261		Vault Switch, Bracket		Appelez-nous	-
55	W10628146		Power Cord   (Replaces: W10167642)				$ 118.94
56	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 22.18
57	W10198376		Bracket, Burner		Appelez-nous	-
58	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 132.46
59	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 35.23
60	W11704629		Strain-relief Power Cord   (Replaces: 8316644)		Appelez-nous	-
61	279827		Switch, Centrifugal   (Replaces: 3388235)			Immediately	$ 191.95
62	W10198461		Bracket-stack   (Replaces: W10198377)		Appelez-nous	-
63	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
64	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
