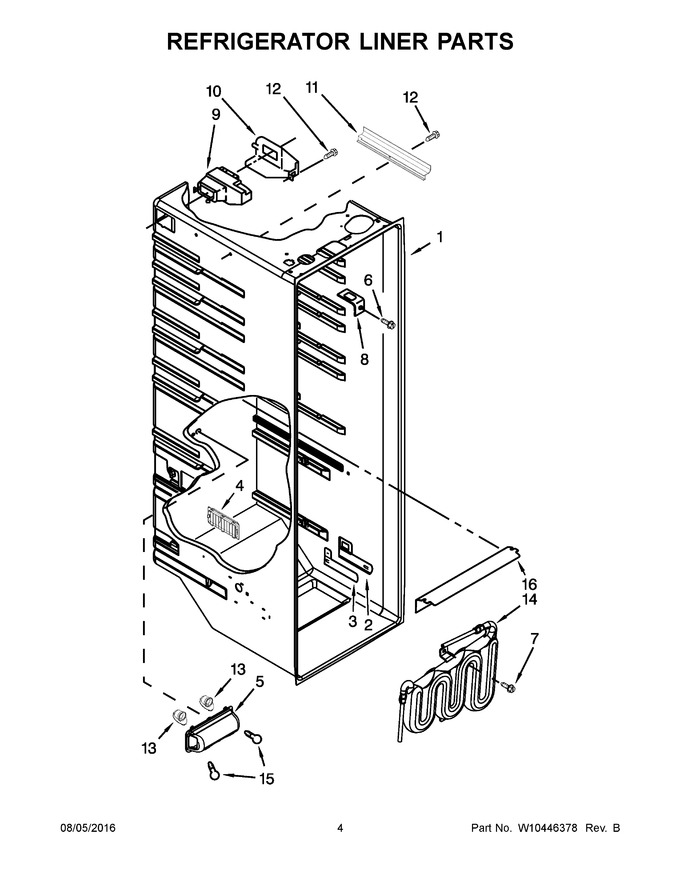

03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide, Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11239891		Assembly, Light Shield   (Replaces: W10242623)				$ 101.52
6	WP488488		Screw   (Replaces: 489290)				$ 8.52
7	488280		Screw		Appelez-nous	-
8	WP2256085		Bracket, Retainer   (Replaces: 2256085)				$ 36.10
9	W10151375		Assembly, Air Diffuser				$ 51.43
10	2152019		Cover, Air Diffuser				$ 90.33
11	W10252495		Cover, Wiring		Appelez-nous	-
12	W10759522		Screw   (Replaces: 486298)				$ 8.24
13	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
14	WPW10276792		Reservoir   (Replaces: W10204356)				$ 144.45
15	W11679940		Bulb, Light   (Replaces: W10311505)			Immediately	$ 11.30
16	2212376		Lens, Light				$ 95.74
