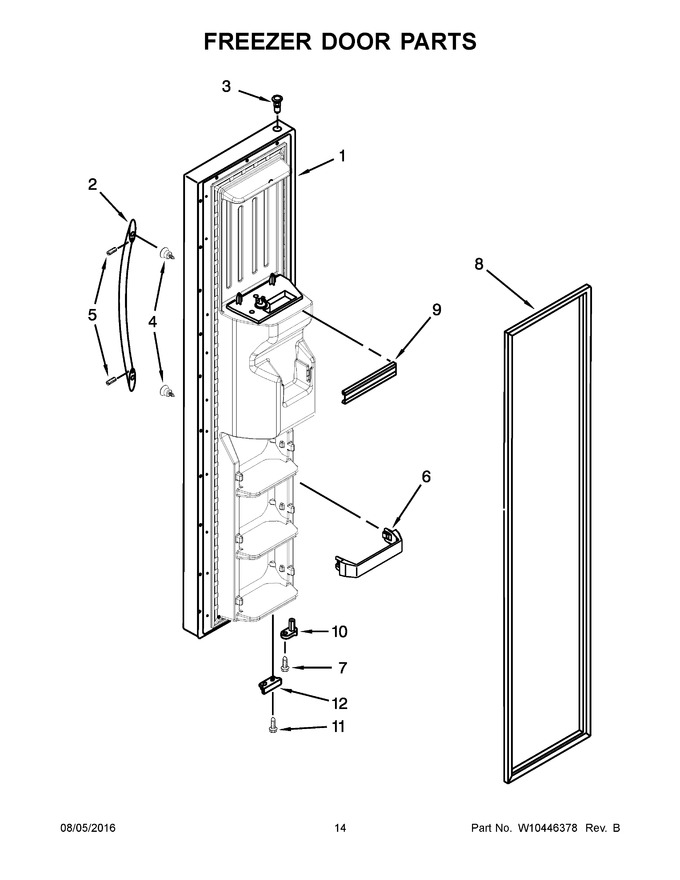

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365689		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2319727S		Handle, Door (stainless)				$ 133.96
3	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
4	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 58.64
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159080		Gasket, Door (black)   (Replaces: 2309654)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 24.27
10	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534		Bracket, Door Stop (silver)		Appelez-nous	-
12A	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
1A	W10365688		Door, Freezer (includes Item 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
8A	W10136733		Gasket, Door (grey)   (Replaces: 2327162)				$ 358.98
