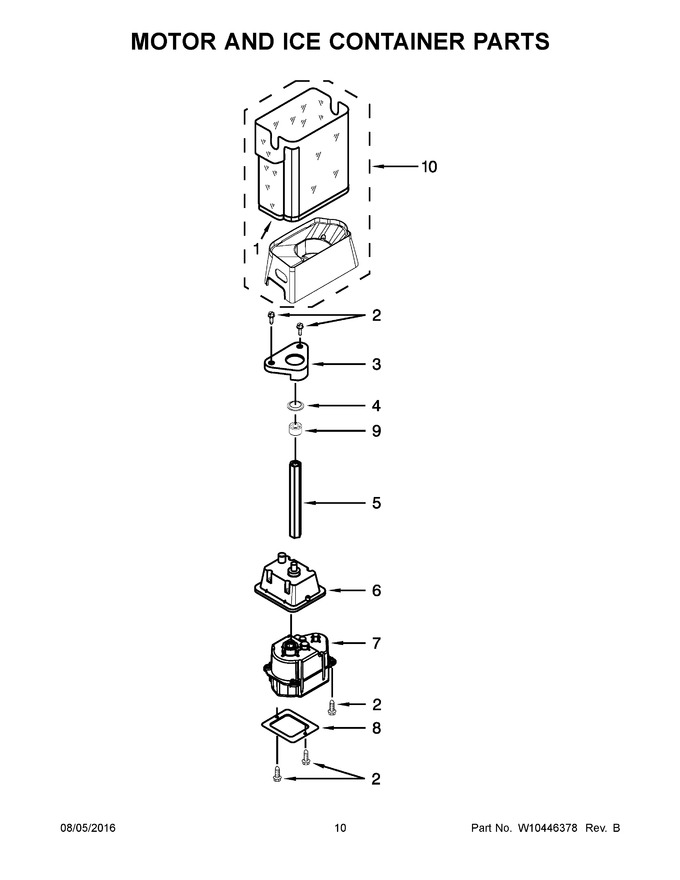

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2317246 | Bin, Upper Crusher |
|
$ 67.98 | |||||
| 2 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 3 | WP2188919 | Clip, Shaft (Replaces: 2188919) |
|
$ 7.55 | |||||
| 4 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 5 | WP2188917 | Shaft, Drive (Replaces: 2188916) |
|
$ 105.19 | |||||
| 6 | 2322488 | Enclosure, Motor |
|
$ 88.63 | |||||
| 7 | W10822606 | Motor, Dispenser (Replaces: 2322580) |
|
Immediately | $ 156.54 | ||||
| 8 | 2212305 | Cover, Motor Enclosure |
|
- | |||||
| 9 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
Immediately | $ 85.41 | ||||
| 10 | W10204457 | Container, Ice (complete) |
|
$ 171.29 |
