SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts

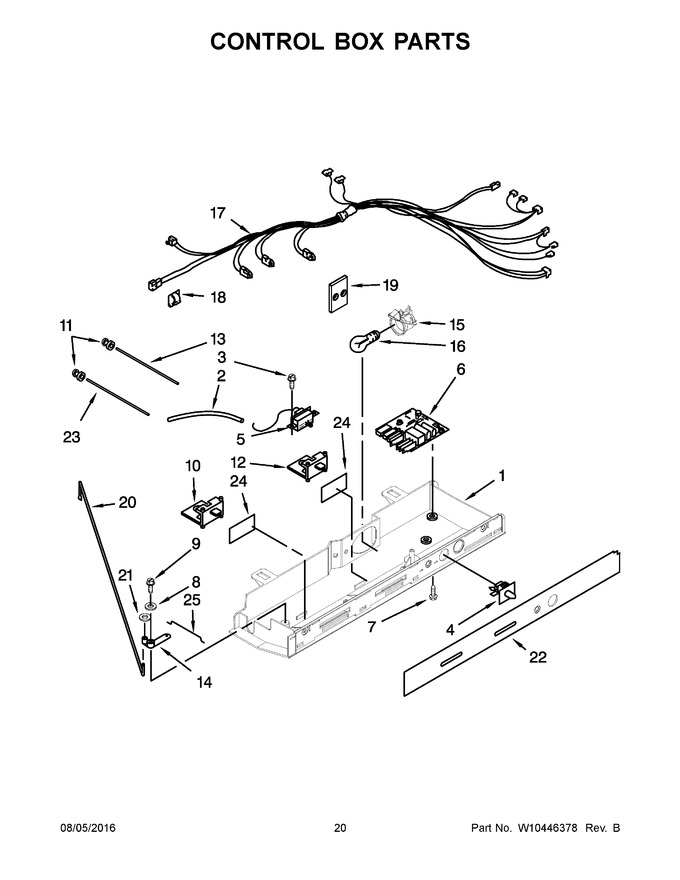

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181738		Box, Control		Appelez-nous	-
2	WP2196003		Tube, Thermostat Barrier   (Replaces: 2196001)				$ 8.35
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Switch, Plunger   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2315562		Thermostat   (Replaces: 2315562)			Immediately	$ 106.18
6	4388932		Control, Adaptive Defrost   (Replaces: 2303824)			Immediately	$ 280.44
7	489392		Screw   (Replaces: 489398)				$ 14.02
8	489203		Washer, Spring		Appelez-nous	-
9	627068		Screw				$ 12.73
10	2181741		Slide, Air Control				$ 95.01
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	2179920		Fiber, Light Optic				$ 37.08
14	2161306		Arm, Pivot				$ 9.65
15	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
16	W11679940		Bulb, Light   (Replaces: W10311505)			Immediately	$ 11.30
17	2310533		Harness, Control Box				$ 329.81
18	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 8.14
19	2172931		Shield, Control Box Heat				$ 73.90
20	2161308		Rod, Connecting (long)				$ 180.72
21	489391		Fastener, Push-on				$ 7.52
22	W10242641		Cover, Control Box Front		Appelez-nous	-
23	2179921		Fiber, Light Optic		Appelez-nous	-
24	2175513		Lens, Window Light		Appelez-nous	-
25	2161307		Rod, Connecting (short)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
