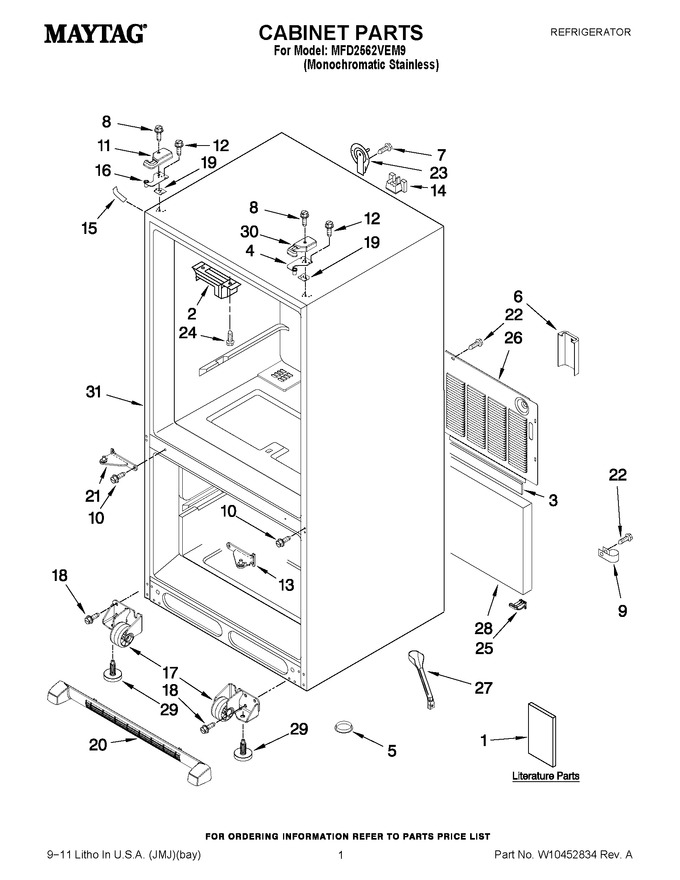

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10432494 | Tech Sheet |
|
- | |||||
| 1 | W10187813 | Guide, Energy |
|
- | |||||
| 1 | W10366206 | Owners Manual |
|
- | |||||
| 2 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 3 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 4 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 5 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 6 | W10208593 | Guard-water Valve |
|
$ 14.96 | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 8 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 9 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 10 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 11 | WPW10337648 | Cover, Left Hinge (apollo Grey) (Replaces: 12962301AP) |
|
$ 22.02 | |||||
| 12 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 13 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces: 13000002AP) |
|
Immediately | $ 91.08 | ||||
| 14 | 12777701 | Block, Filter (2) |
|
$ 7.17 | |||||
| 15 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 16 | W11592375 | Hinge, Top Left (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 17 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 17 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 18 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 19 | 12999501 | Shim, Hinge (left) |
|
$ 94.79 | |||||
| 19 | 12999502 | Shim, Hinge (right) |
|
$ 95.81 | |||||
| 20 | WPW10534155 | Grille, Toe (apollo Grey) (Replaces: W10244558) |
|
Immediately | $ 119.56 | ||||
| 21 | W10917988 | Hinge, Center (lt) (apollo Grey) (Replaces: 13000001AP) |
|
Immediately | $ 91.08 | ||||
| 22 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 23 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 24 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 7.61 | ||||
| 25 | 12831101 | Sweep, Dual Tube |
|
$ 12.41 | |||||
| 26 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 198.09 | |||||
| 27 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 28 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 29 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 30 | WPW10191117 | Cover, Right Hinge (apollo Grey) (Replaces: 12962302AP) |
|
$ 21.95 | |||||
| 31 | N/P | Cabinet (not A Servicable Part) |
|
- |
