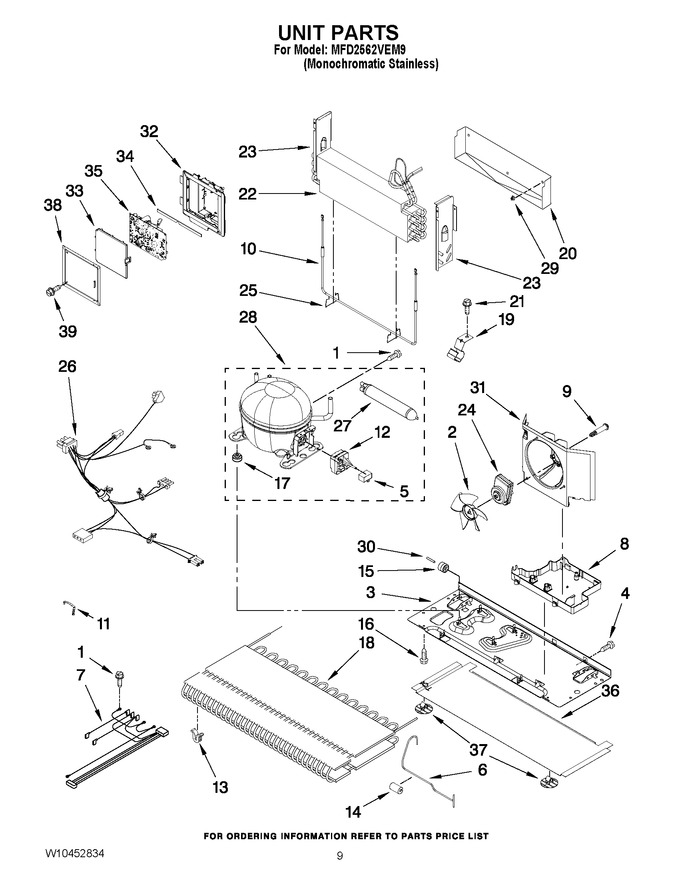

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10210985) |
|
$ 105.29 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 6 | WPW10233569 | Tube, Discharge (Replaces: W10233569) |
|
$ 124.53 | |||||
| 7 | W10292242 | Harness, Evap (incl.def.heater) |
|
$ 135.62 | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 99.03 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 12.65 | |||||
| 10 | W10825088 | Heater, Defrost (Replaces: 12729129) |
|
$ 158.25 | |||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.32 | |||||
| 12 | W10361443 | Start Device |
|
$ 166.55 | |||||
| 13 | WPW10137529 | Grommet, Cond. (4) (Replaces: W10137529) |
|
$ 8.34 | |||||
| 14 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 15 | 12477102 | Roller (2) |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
Immediately | $ 7.19 | ||||
| 18 | WPW10346415 | Condenser (Replaces: W10346415) |
|
$ 335.38 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 54.30 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 79.72 | |||||
| 22 | W11256565 | Evaporator (Replaces: W10317014) |
|
Immediately | $ 365.21 | ||||
| 23 | 12225702 | Dam (right Side) |
|
$ 14.09 | |||||
| 23 | 12225602 | Dam (left Side) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: W10239053) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | W11224411 | Harness, Unit With Power Cord (Replaces: W10234025) |
|
$ 140.02 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10233960 | Compressor (includes Items 11,12,17,27) (Replaces: W10187125) |
|
Immediately | $ 513.66 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (2) (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 79.66 | |||||
| 32 | W10257665 | Box, Hv Control |
|
$ 50.84 | |||||
| 33 | W11226688 | Lid, Hv Box (Replaces: 12957702SP) |
|
$ 81.10 | |||||
| 34 | 12957801SP | Gasket, Hv Box |
|
- | |||||
| 35 | WPW10317076 | Board, Control (Replaces: W10268635) |
|
Immediately | $ 393.18 | ||||
| 36 | W10206338 | Extension-basepan |
|
- | |||||
| 37 | W10206339 | Fastener-basepan |
|
$ 10.69 | |||||
| 38 | 12961602 | Cover, Control Box |
|
$ 110.66 | |||||
| 39 | W11686675 | Screw (Replaces: 12990702) |
|
$ 13.59 | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | N/P | Refrigerant Charge (5.00 Ozs.(r-134a)) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | 978028 | Valve, Access (1/2``) |
|
- |
