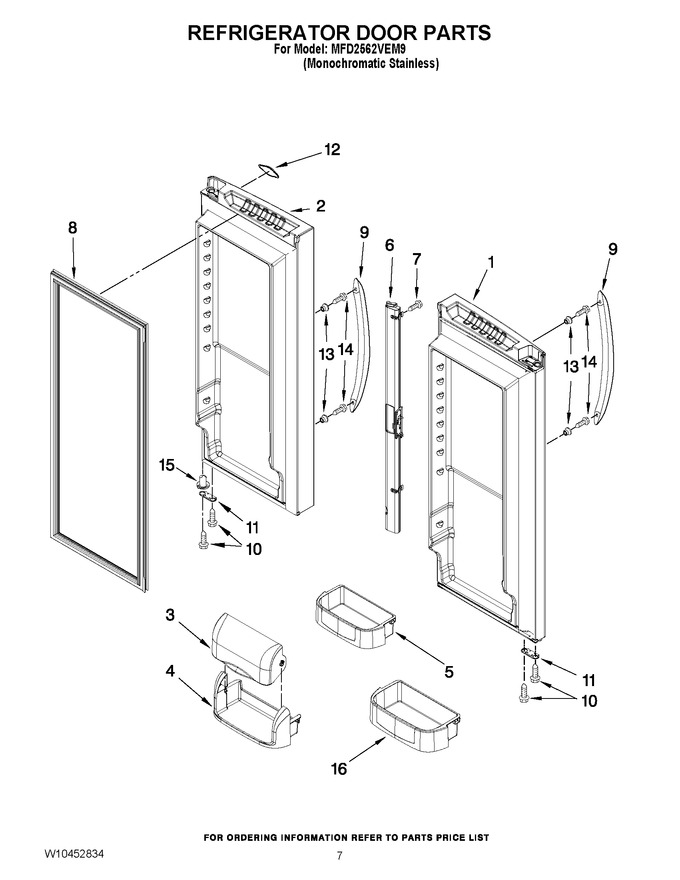

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107825S		Door, Left (stainless Steel)		Appelez-nous	-
2	13107824S		Door, Right (stainless Steel)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004748		Bin, Shelf (3) (medium)   (Replaces: 12801904)			Immediately	$ 87.32
6	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12732501AP)			Immediately	$ 177.93
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W10830162		Gasket, Door (2) (apollo Grey)   (Replaces: W10179332)			Immediately	$ 212.57
9	W10291144		Handle, Door (stainless Steel)				$ 105.40
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
14	W10290759		Screw				$ 5.83
15	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
16	67004749		Bin, Shelf (2) (gallon)   (Replaces: 12840002)				$ 90.06
