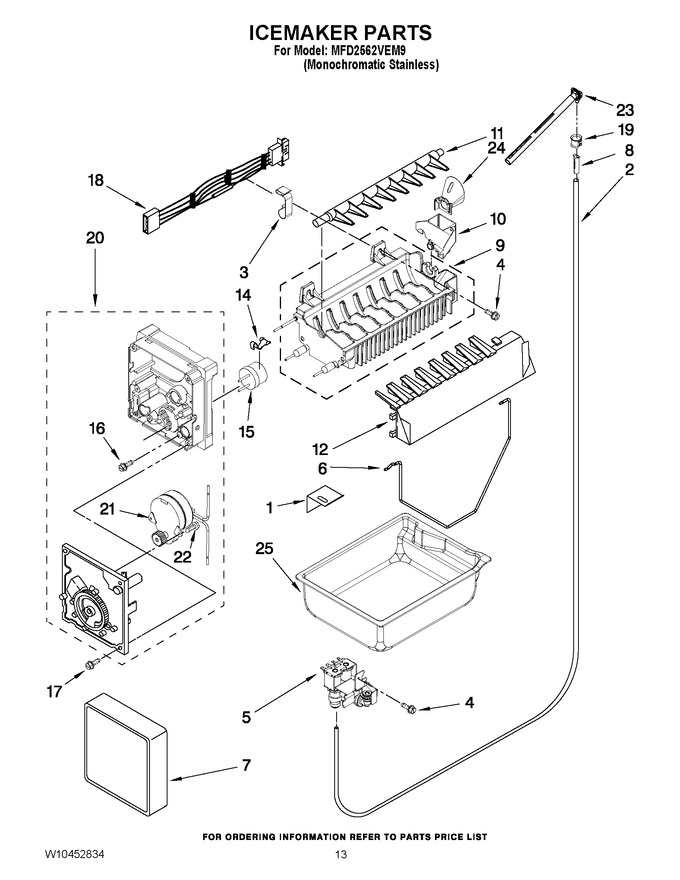

1	WP2256087		Bracket, Icemaker   (Replaces: 2256086)				$ 93.00
2	W11120581		Tubing, Plastic   (Replaces: B5705333)				$ 118.98
3	10526702		Clamp		Appelez-nous	-
4	WP3395530		Screw   (Replaces: 697773)				$ 7.70
5	WPW10420083		Valve, Water   (Replaces: W10420083)			Immediately	$ 159.91
6	WPW10378255		Arm-shut Off   (Replaces: W10378255)				$ 88.22
7	WPW10289690		Cover   (Replaces: W10289690)			Immediately	$ 8.40
8	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 7.82
9	WPW10300025		Mold & Heater Assembly (also Order 542638)   (Replaces: W10300025)			Immediately	$ 192.30
10	W10410073		Cup Water Fill				$ 80.07
11	W10318914		Ejector				$ 36.27
12	WPW10122563		Ice Stripper   (Replaces: W10122563)				$ 94.69
14	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.05
15	WP627985		Thermostat (order 542369 Cement)   (Replaces: W10290336)				$ 109.18
16	8533917		Screw (2)				$ 13.37
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	WPW10458985		Harness, Ice Maker   (Replaces: W10404661)				$ 106.05
19	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
20	WPW10281342		Module Assembly (includes Items 21& 22)   (Replaces: W10281342)				$ 267.12
21	N/P		Motor (order No. 20)		Appelez-nous	-
22	W10001240		Screw				$ 8.78
23	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 114.15
24	W11817981		Funnel, Fill Tube   (Replaces: 12766414)			Immediately	$ 86.92
25	W10884390		Pan, Ice   (Replaces: W10377152)			Immediately	$ 142.52
100	D7824706Q		Icemaker Assembly   (Replaces: W10190978)			Immediately	$ 167.35
