SELECT A DIAGRAM

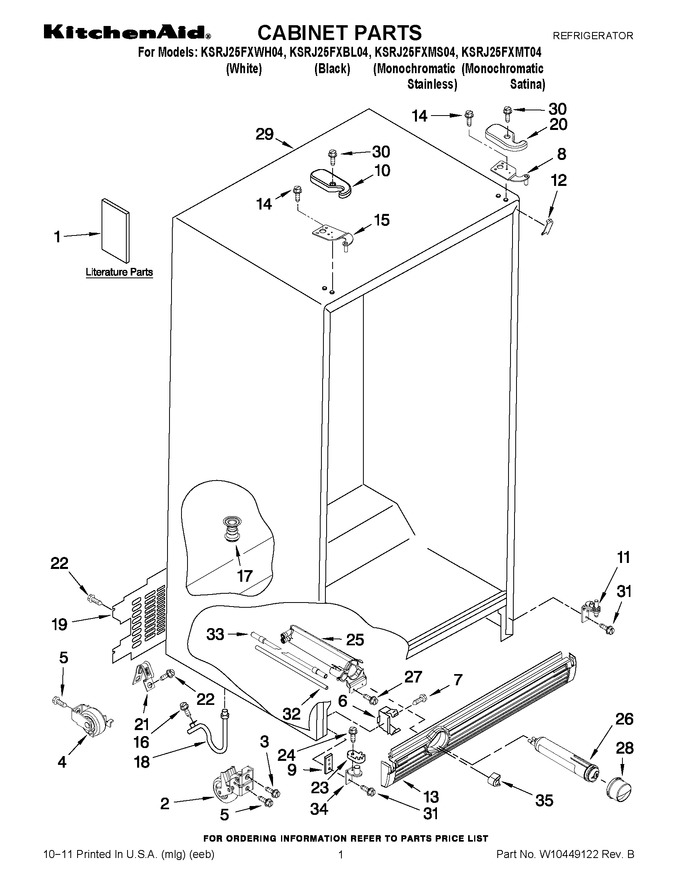

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10305232		Instr Sheet, Door Removal		Appelez-nous	-
1	W10289678		Use & Care Guide		Appelez-nous	-
1	W10324237		Service & Wiring Sheet		Appelez-nous	-
1	W10320901		Energy Guide		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller		Appelez-nous	-
3	W10850698		Screw 5/16 X 1.440   (Replaces: 3400517)				$ 14.42
4	WPW10250570		Rear Roller   (Replaces: W10250570)				$ 42.18
5	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.84
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	WPW10141604		Screw 8-32 X 3/8   (Replaces: W10141604)				$ 8.85
8	W10242649		Hinge Top Rc		Appelez-nous	-
9	WP2181911		Shim, Hinge   (Replaces: 2181911)				$ 34.87
10	W10331628		Hinge Cover, Fc (black)		Appelez-nous	-
10	W10331630		Hinge Cover, Fc (apollo Gray)		Appelez-nous	-
10	W10331627		Hinge Cover, Fc (white)		Appelez-nous	-
11	W10219817		Hinge Bottom		Appelez-nous	-
12	2304846		Filler, Wrapper (white)		Appelez-nous	-
12	2304848		Filler, Wrapper (black)		Appelez-nous	-
12	W10143043		Filler, Wrapper (apollo Gray)		Appelez-nous	-
13	WPW10184890		Grille (midnight Grey)   (Replaces: W10184890)				$ 166.64
13	W10184886		Grille (white)				$ 67.61
13	WPW10184888		Grille (black)   (Replaces: W10184888)				$ 219.99
14	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
15	W10242650		Hinge Top, Fc		Appelez-nous	-
16	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 8.38
17	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 53.45
18	W11512417		Tube, Extension   (Replaces: W10153550)				$ 36.53
19	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 142.71
20	W10331626		Hinge Cover, Rc (apollo Gray)		Appelez-nous	-
20	W10331623		Hinge Cover, Rc (white)		Appelez-nous	-
20	W10331624		Hinge Cover, Rc (black)		Appelez-nous	-
21	549193		Clamp, Service Cord				$ 14.06
22	WPW10141645		Screw 8-15 X 1/2   (Replaces: W10141645)				$ 8.05
23	W11778262		Door Closer, Lower Cam   (Replaces: 2223751)				$ 11.63
24	WP489483		Screw 10-32 X 1/2   (Replaces: 489483)				$ 11.41
25	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
26	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
27	WP489500		Screw 10-32 X 5/8   (Replaces: 489500)				$ 8.17
28	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
28	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 58.83
28	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 34.67
29	N/P		Cabinet (not Serviced)		Appelez-nous	-
30	WP8281227		Screw 8-32 X 1/2   (Replaces: 8281227)				$ 10.96
31	WP489497		Screw 12-24 X .818   (Replaces: W10142235)			Immediately	$ 29.09
32	WPW10350006		Tube, Filter Outlet   (Replaces: W10330344)				$ 121.32
33	W10281289		Tube, Filter Inlet				$ 57.80
34	2303141		Hinge Bottom				$ 261.00
35	2260503MG		Button, Water Filter (midnight Grey)				$ 28.36
35	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
35	2260503W		Button, Water Filter (white)			Immediately	$ 35.87

    View Diagram in Separate Window       Print Part List
