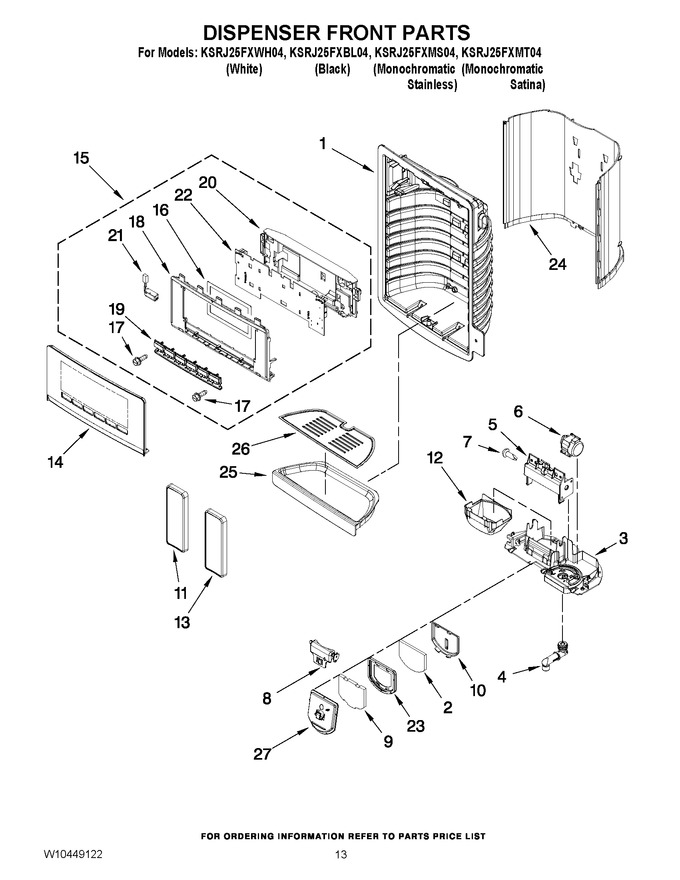

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10331454 | Insulation (Replaces: W10331454) |
|
$ 25.75 | |||||
| 3 | W10286902 | Separator, Fixed |
|
- | |||||
| 4 | WP2305235 | Spigot-body Assy (Replaces: W10317267) |
|
$ 147.07 | |||||
| 5 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 6 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 104.12 | |||||
| 7 | W10174818 | Clip, Mtr Coup |
|
- | |||||
| 8 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 9 | WPW10331456 | Insulation (Replaces: W10331456) |
|
$ 25.75 | |||||
| 10 | WPW10317279 | Door, Ice (Replaces: W10317279) |
|
$ 20.52 | |||||
| 11 | W10334780 | Pad, Ice Dispenser (white) |
|
- | |||||
| 11 | WPW10368730 | Pad, Ice Dispenser (apollo Gray) (Replaces: W10334786) |
|
Immediately | $ 319.47 | ||||
| 11 | W10334783 | Pad, Ice Dispenser (black) |
|
- | |||||
| 12 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 13 | W10334810 | Pad, Water Dispenser (apollo Gray) |
|
$ 128.64 | |||||
| 13 | W10334807 | Pad, Water Dispenser (black) |
|
- | |||||
| 13 | W10334804 | Pad, Water Dispenser (white) |
|
- | |||||
| 14 | W10286918 | Fascia Assy (stainless) |
|
- | |||||
| 14 | W10286905 | Fascia Assy (white) |
|
- | |||||
| 14 | W10286904 | Fascia Assy (black) |
|
- | |||||
| 15 | W10286916 | Ui Assy, Stealth |
|
- | |||||
| 16 | W10254293 | Barrier, Moisture |
|
- | |||||
| 17 | WP3400906 | Screw 6-19 X 1/4 (Replaces: W10141632) |
|
$ 9.05 | |||||
| 18 | W10286907 | Frame, Fascia |
|
- | |||||
| 19 | W10286909 | Tree, Button |
|
- | |||||
| 20 | W10254277 | Cover, Board |
|
- | |||||
| 21 | W11290115 | Led Assy (Replaces: W10238083) |
|
$ 84.45 | |||||
| 22 | W10289813 | Ctrl-elek, Stealth |
|
- | |||||
| 23 | WPW10317282 | Seal (Replaces: W10317282) |
|
$ 27.18 | |||||
| 24 | W10286899 | False Wall (black) |
|
- | |||||
| 24 | W10286900 | False Wall (stainless) |
|
- | |||||
| 24 | W10286898 | False Wall (white) |
|
- | |||||
| 25 | W10286894 | Drip Tray (white) |
|
- | |||||
| 25 | W10286895 | Drip Tray (black) |
|
- | |||||
| 25 | W10286896 | Drip Tray (stainless) |
|
- | |||||
| 26 | W10286921 | Grate, Drip Tray (black) |
|
- | |||||
| 26 | W10286920 | Grate, Drip Tray (white) |
|
- | |||||
| 26 | W10286922 | Grate, Drip Tray (stainless) |
|
- | |||||
| 27 | W10339582 | Clip |
|
- |
