Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10317884 Refrigerator Door (includes Item 5) (black) Appelez-nous -
1 W10318395 Refrigerator Door (includes Item 5) (mono Stainless) Appelez-nous -
1 W10297378 Refrigerator Door (includes Item 5) (mono Satina) Appelez-nous -
1 W10297353 Refrigerator Door (includes Item 5) (white) Appelez-nous -
2 2301486 Door, Compartment Appelez-nous -
3 WP2182181 Thimble-top   (Replaces: 2200087) Special Order $ 8.15

4 2319727S Handle (includes Item 7) (stainless Steel) Special Order $ 133.96

4 2319727W Handle (includes Item 7) (white) Special Order $ 106.80

4 2319727B Handle (includes Item 7) (black) Special Order $ 109.87

5 2159075 Door Gasket, Magnetic   (Replaces: 2221302) In-Stock Immediately $ 333.00

5 2159083 Door Gasket, (mist Beige)   (Replaces: 2221313) Special Order $ 251.49

5 WPW10136734 Door Gasket, (black)   (Replaces: 2326338) Special Order $ 335.39

6 WP3400012 Screw 10-32 X 1/2   (Replaces: 3400012) Special Order $ 8.26

7 W11366418 Set Screw 1/4-28 X .313 (chrome)   (Replaces: W10010140) In-Stock Immediately $ 15.79

7 WPW10010150 Set Screw 1/4-28 X .313 (black)   (Replaces: W10010150) Special Order $ 8.57

8 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

8 WPW10243391 Nameplate (gray)   (Replaces: W10243391) Special Order $ 58.31

8 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

9 WPW10170540 Screw 8-18 X .785   (Replaces: W10170540) In-Stock Immediately $ 8.51

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 2159124 Gasket Appelez-nous -
12 WP489483 Screw 10-32 X 1/2   (Replaces: 489420) Special Order $ 11.41

13 W10219805 Bracket, Door Stop (white) Appelez-nous -
13 W10219808 Bracket, Door Stop (black) Appelez-nous -
14 WP2223434K Door Bin   (Replaces: 2223434) In-Stock Immediately $ 102.08

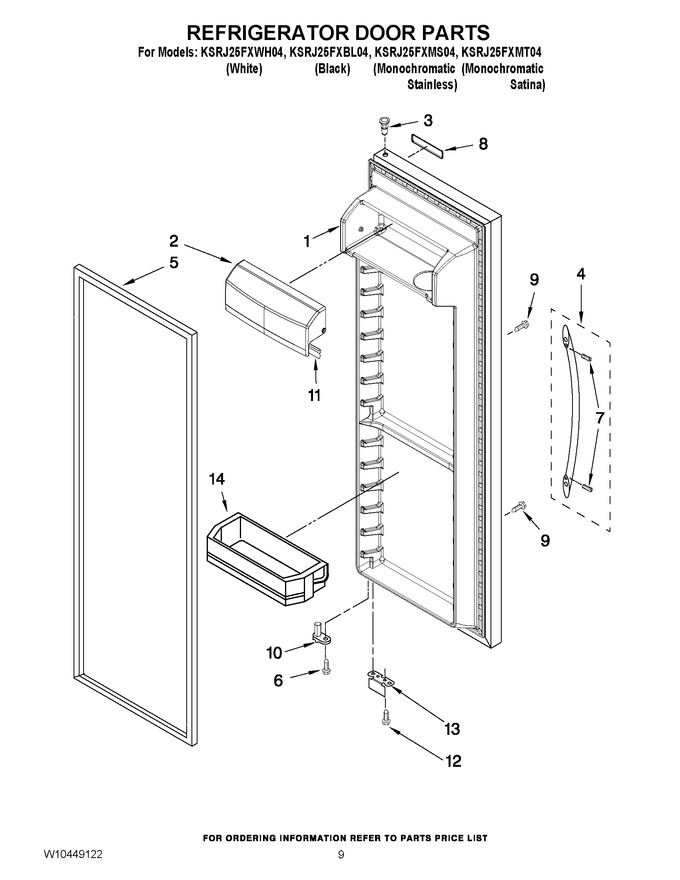

    View Diagram in Separate Window     Print Icon   Print Part List
