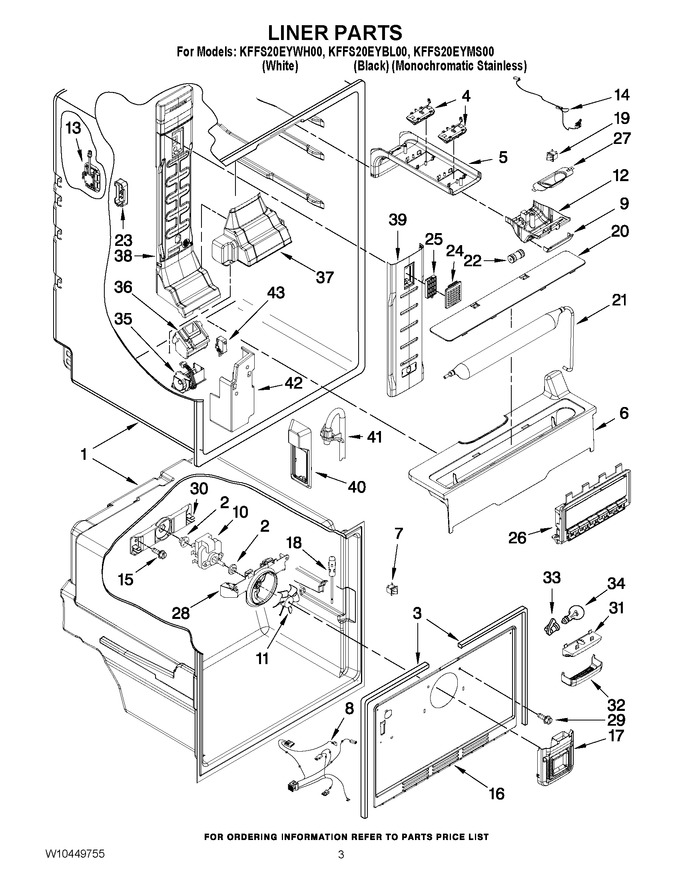

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 26.78 | |||||
| 4 | WPW10360497 | Led Light Assembly, Rc (Replaces: W10360497) |
|
$ 198.85 | |||||
| 5 | W10469878 | Housing, Light Rc |
|
Immediately | $ 116.22 | ||||
| 6 | W10798439 | Water Reservoir Container (Replaces: W10326338) |
|
$ 171.35 | |||||
| 7 | W11396033 | Switch, Rocker Arm (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 8 | WPW10283809 | Wire Assembly, Evaporator Fan (Replaces: W10283809) |
|
$ 123.14 | |||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 72.64 | |||||
| 10 | W11818487 | Fan Motor (Replaces: W10464673) |
|
$ 113.70 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | WPW10435577 | Control Housing (Replaces: W10435577) |
|
Immediately | $ 92.66 | ||||
| 13 | W11683241 | Led Module, Single (Replaces: W10279030) |
|
Immediately | $ 259.02 | ||||
| 14 | W10421350 | Wire Assembly, Rc Lighting |
|
$ 99.13 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 230.63 | |||||
| 17 | W11227949 | Fc Tower (Replaces: W10317182) |
|
$ 107.22 | |||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 107.75 | |||||
| 21 | W10801011 | Water Reservoir, Single (Replaces: W10426134) |
|
Immediately | $ 136.92 | ||||
| 22 | WPW10271543 | Connector, Water (Replaces: W10271543) |
|
Immediately | $ 33.74 | ||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 84.17 | ||||
| 24 | WPW10330850 | Grille, Air Filter (Replaces: W10330850) |
|
$ 35.77 | |||||
| 25 | W10311524 | Antibacterial Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | W11082844 | Ui Assembly, Control (Replaces: W10461918) |
|
Immediately | $ 435.82 | ||||
| 27 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 96.51 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 30.92 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 71.85 | ||||
| 31 | WPW10313917 | Housing, Lighting Fc (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 32 | WPW10313918 | Light Cover, Fc (Replaces: W10313918) |
|
Immediately | $ 90.80 | ||||
| 33 | W11661565 | Light Socket, Fc (Replaces: W10440814) |
|
Immediately | $ 34.11 | ||||
| 34 | W11518235 | Light Bulb, Fc (Replaces: W10473925) |
|
Immediately | $ 29.29 | ||||
| 35 | WPW10257451 | Damper, Electronic Control (Replaces: W10257451) |
|
Immediately | $ 164.18 | ||||
| 36 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 101.35 | ||||
| 37 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 97.20 | |||||
| 38 | W11508229 | Multiflow Assy (Replaces: W10448448) |
|
$ 66.86 | |||||
| 39 | WPW10356895 | Multiflow Cover (Replaces: W10356895) |
|
$ 153.80 | |||||
| 40 | W11243624 | Facade, Dispenser (Replaces: W10204292) |
|
Immediately | $ 68.77 | ||||
| 41 | W10463316 | Waterline, Dispenser |
|
$ 126.41 | |||||
| 42 | W11362531 | Cover, Switch (Replaces: W10339200) |
|
$ 35.28 | |||||
| 43 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 68.90 |
