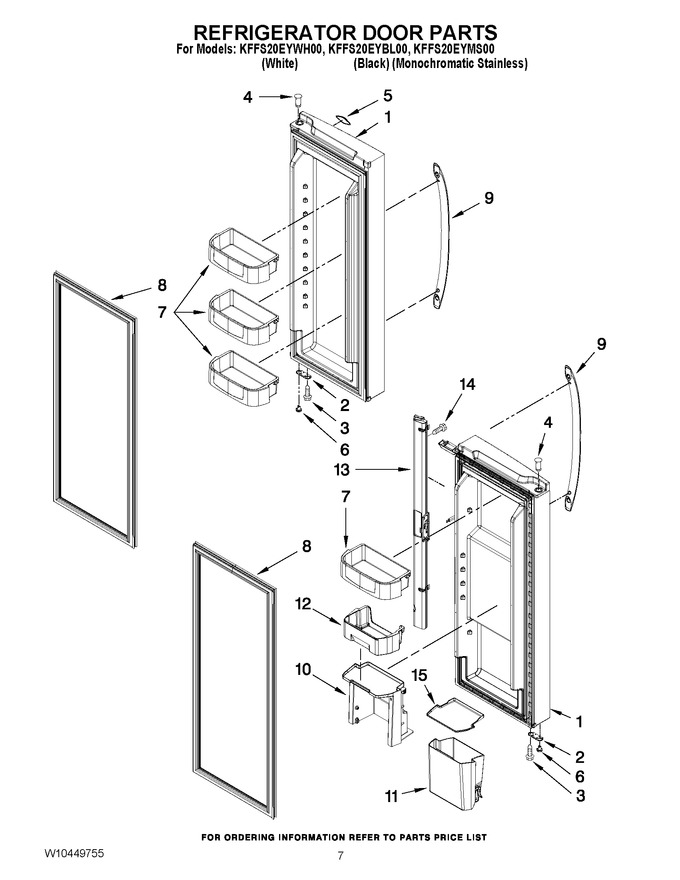

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10393587 | Refrigerator Door (includes No.8) (white, Lh) (Replaces: W10393587) |
|
$ 603.02 | |||||
| 1 | LW10353181 | Refrigerator Door (includes No.8) (white, Rh) (Replaces: W10353181) |
|
$ 823.57 | |||||
| 1 | LW10413522 | Refrigerator Door (includes No.8) (black, Lh) (Replaces: W10413522) |
|
$ 478.29 | |||||
| 1 | LW10413518 | Refrigerator Door (includes No.8) (black, Rh) (Replaces: W10413518) |
|
$ 637.16 | |||||
| 1 | LW10413524 | Refrigerator Door (includes No.8) (mono Stainless, Lh) (Replaces: W10413524) |
|
$ 823.61 | |||||
| 1 | LW10413519 | Refrigerator Door (includes No.8) (mono Stainless, Rh) (Replaces: W10413519) |
|
$ 827.54 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw, 8 X 1/2 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (lh Door) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 4 | W11544568 | Thimble (rh Door) (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 5 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 5 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 6 | WPW10470155 | Door Closure (Replaces: W10397037) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Door, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 8 | WPW10460580 | Gasket, Rc (apollo Grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 | ||||
| 8 | W10460610 | Gasket, Rc (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 8 | W10460612 | Gasket, Rc (beige) (Replaces: W10353189) |
|
Immediately | $ 232.69 | ||||
| 9 | WPW10314517K | Handle Assembly (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 9 | W10314516 | Handle Assembly (black) |
|
- | |||||
| 9 | WPW10314515 | Handle Assembly (white) (Replaces: W10314515) |
|
$ 238.49 | |||||
| 10 | WPW10317224 | Utility Compartment (Replaces: W10317224) |
|
$ 103.80 | |||||
| 11 | WPW10411219 | Bin, Fresh & Ready (Replaces: W10411219) |
|
Immediately | $ 95.94 | ||||
| 12 | WPW10326335 | Shallow Bin (Replaces: W10326335) |
|
Immediately | $ 58.46 | ||||
| 13 | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10448924) |
|
Immediately | $ 223.83 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10448918) |
|
Immediately | $ 128.93 | ||||
| 13 | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10448923) |
|
$ 241.66 | |||||
| 14 | W10854958 | Screw, Mullion (Replaces: 12990302) |
|
$ 7.90 | |||||
| 15 | WPW10317192 | Bin, Door Mat (Replaces: W10317192) |
|
$ 87.32 |
