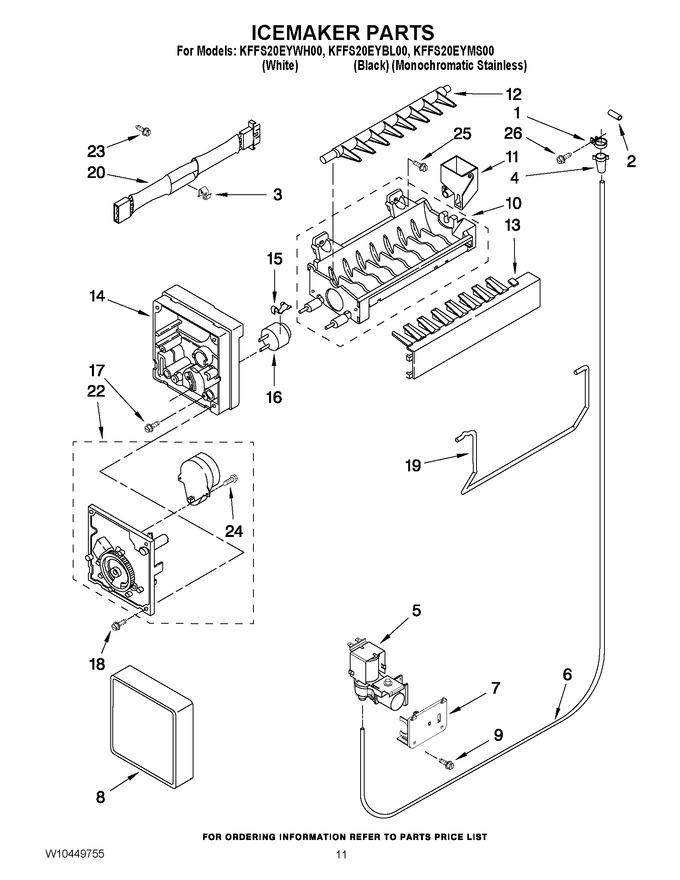

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 2 | W10446152 | Tube, Water Inlet |
|
$ 25.54 | |||||
| 3 | 6283795 | Clip, Water Valve |
|
- | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 5 | WPW10279866 | Valve Solenoid (dual) (Replaces: W10279866) |
|
Immediately | $ 138.28 | ||||
| 5 | WPW10238100 | Valve Solenoid (single) (Replaces: W10238100) |
|
Immediately | $ 210.55 | ||||
| 6 | WPW10238092 | Tube, Water (thick Wall) (Replaces: W10238092) |
|
Immediately | $ 132.24 | ||||
| 7 | W10847867 | Bracket, Water Valve, Dual (Replaces: W10237915) |
|
$ 80.75 | |||||
| 8 | WPW10289690 | Cover, Im Module (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Sillicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 11 | W11676540 | Cup-water Fill (Replaces: W10435665) |
|
$ 22.65 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 13 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 14 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 15 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 17 | W10001280 | Screw |
|
- | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WPW10474785 | Shut Off Arm (Replaces: W10474785) |
|
Immediately | $ 58.29 | ||||
| 20 | W10309399 | Harness, Wiring |
|
$ 137.22 | |||||
| 22 | 8201515 | Module Assembly (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 23 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 24 | 489136 | Screw 3-24 X 23/64 |
|
$ 10.80 | |||||
| 25 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 26 | WP488787 | Screw 8-18 X 1/2 (Replaces: 488886) |
|
$ 11.26 | |||||
| 100 | 4317943 | Icemaker, Complete Assembly (Replaces: W10190952) |
|
Immediately | $ 183.45 |
