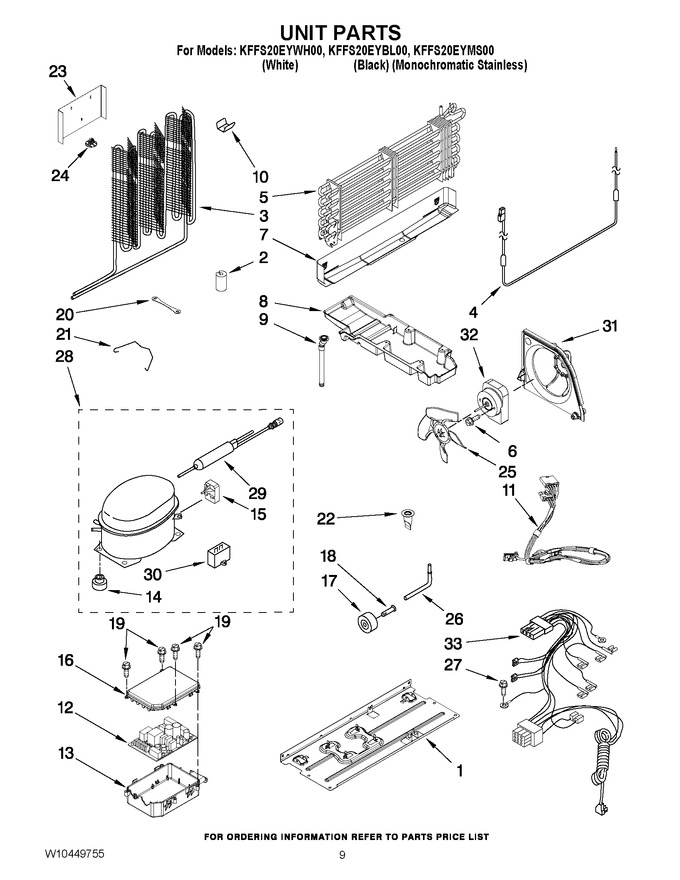

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 164.30 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 278.20 | |||||
| 4 | WPW10436849 | Heater, Defrost (Replaces: W10436849) |
|
Immediately | $ 134.14 | ||||
| 5 | WPW10321158 | Evaporator Assy. (Replaces: W10321158) |
|
Immediately | $ 293.66 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Heat Shield (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | W10890667 | Drain Pan (Replaces: W10466213) |
|
$ 151.95 | |||||
| 9 | W11190084 | Drain Tube (Replaces: W10314199) |
|
Immediately | $ 65.56 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 11 | WPW10424230 | Wire Assembly, Low Voltage (Replaces: W10424230) |
|
Immediately | $ 123.63 | ||||
| 12 | W11034366 | Electronic Control Minotaur (Replaces: W10336511) |
|
Immediately | $ 393.63 | ||||
| 13 | 2323186 | Enclosure, Electronic Control (Replaces: W10370696) |
|
$ 107.48 | |||||
| 14 | WPW10169124 | Grommet (4) (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10197428 | Start-device Combination (service) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 15 | WPW10194431 | Start-device Combination (production) (Replaces: W10194431) |
|
Immediately | $ 86.85 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 77.99 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 21 | W10204187 | Bale Strap |
|
- | |||||
| 22 | W11190084 | Valve, Drain (Replaces: W10316650) |
|
Immediately | $ 65.56 | ||||
| 23 | W10349514 | Cover, Condenser Bottom |
|
$ 82.40 | |||||
| 24 | W10296661 | Clip, Cover |
|
$ 17.78 | |||||
| 25 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 99.82 | |||||
| 26 | 2154109 | Tube, Process |
|
$ 76.26 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 28 | WPW10466675 | Compressor (includes Items 14, 15, 29 & 30) (Replaces: W10391109) |
|
$ 834.53 | |||||
| 29 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 31 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 32 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 33 | W10390389 | Wire Assy, Unit |
|
$ 253.71 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | N/P | Refrigerant Charge (4.0 Ozs. (r134a)) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 |
