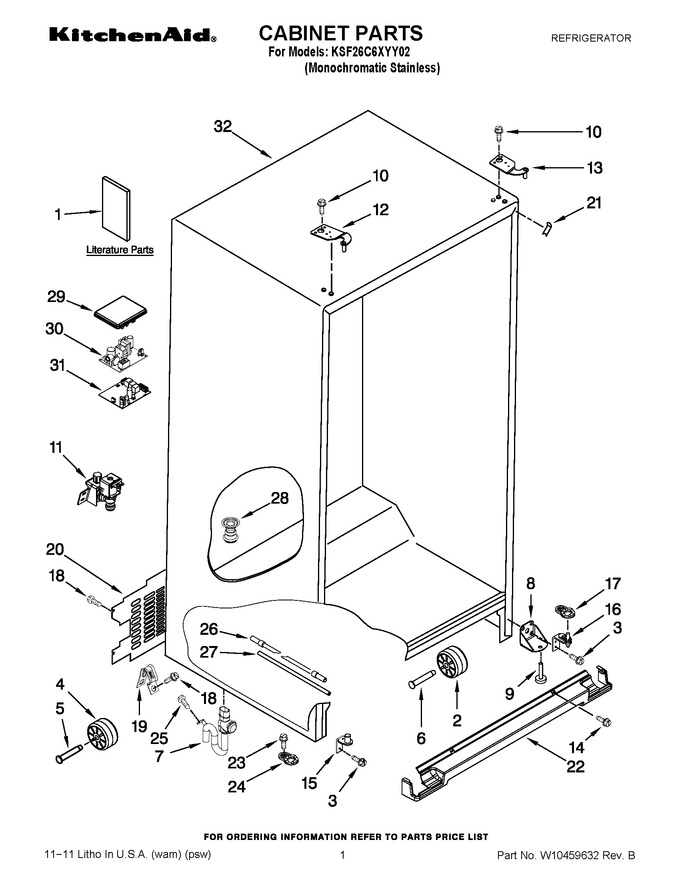

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10368322 | Use & Care Guide |
|
- | |||||
| 1 | W10403232 | Energy Label |
|
- | |||||
| 1 | W10287673 | Service & Wiring Sheet |
|
- | |||||
| 2 | WPW10475495 | Front Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 7.62 | |||||
| 4 | WP67005149 | Roller (rear) (Replaces: 12477102) |
|
Immediately | $ 22.02 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 6 | WPW10285005 | Rivet, Roller (Replaces: W10285005) |
|
$ 15.96 | |||||
| 7 | W11519143 | Drain Tube Assy (Replaces: W10369091) |
|
$ 36.52 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 63.15 | |||||
| 9 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 10 | WPW10308750 | Screw (Replaces: W10308750) |
|
$ 69.80 | |||||
| 11 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 200.52 | ||||
| 12 | W11590581 | Hinge, Top (fc) (Replaces: W10249922) |
|
$ 23.06 | |||||
| 13 | W11409290 | Hinge, Top (rc) (Replaces: W10249925) |
|
$ 67.12 | |||||
| 14 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 9.84 | |||||
| 15 | W11293374 | Bottom Hinge (fc) (Replaces: W10249943) |
|
$ 69.83 | |||||
| 16 | W10500004 | Bottom Hinge (rc) (Replaces: W10257209) |
|
Immediately | $ 132.52 | ||||
| 17 | W10500004 | Door Closer (rc) (Replaces: W10257197) |
|
Immediately | $ 132.52 | ||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 19 | 549193 | Clamp, Service Cord |
|
$ 13.39 | |||||
| 20 | W10257238 | Cover, Unit (Replaces: W10333887) |
|
$ 98.13 | |||||
| 21 | WP12587703AP | Filler, Corner (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 22 | WPW10713153 | Grille (Replaces: W10257234) |
|
Immediately | $ 129.07 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 24 | W10876191 | Door Closer (fc) (Replaces: W10257200) |
|
$ 17.12 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10277956) |
|
$ 108.79 | |||||
| 27 | WPW10279885 | Tube, Filter Outlet (Replaces: W10279857) |
|
$ 122.61 | |||||
| 28 | W10247979 | Drain Fitting |
|
$ 64.59 | |||||
| 29 | W11226688 | Cover (Replaces: 12957702) |
|
$ 81.10 | |||||
| 30 | WPW10226427 | Elec. Control-45w Power Supply (Replaces: W10226427) |
|
Immediately | $ 335.17 | ||||
| 31 | WPW10235503 | Elec. Control (Replaces: W10235503) |
|
Immediately | $ 364.61 | ||||
| 32 | N/P | Cabinet (not A Serviceable Part) |
|
- |
