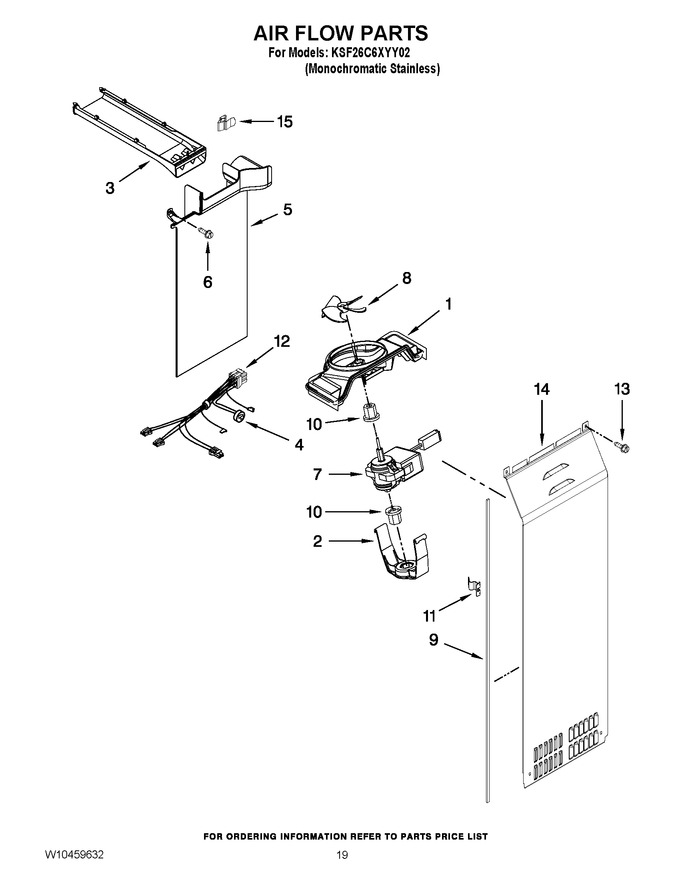

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807265 | Fan Scroll (Replaces: W10251462) |
|
$ 29.24 | |||||
| 2 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 22.86 | |||||
| 3 | W10515038 | Air Duct, Upper (Replaces: W10223286) |
|
$ 347.25 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10260437) |
|
Immediately | $ 50.77 | ||||
| 5 | WPW10382898 | Air Duct Freezer (Replaces: W10382898) |
|
$ 82.30 | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 7 | WP2315549 | Fan Motor (Replaces: 2315549) |
|
Immediately | $ 249.86 | ||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | W10240370 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 7.77 | |||||
| 11 | W11232019 | Clip, Mounting (Replaces: W10274578) |
|
Immediately | $ 10.85 | ||||
| 12 | W11566475 | Harness, Fan Evaporator (includes No.4) (Replaces: W10242409) |
|
$ 74.39 | |||||
| 13 | WP693995 | Screw, Evap Cover (Replaces: W10142292) |
|
Immediately | $ 7.19 | ||||
| 14 | WPW10388268 | Cover, Evaporator (includes No.9) (Replaces: W10388268) |
|
$ 244.21 | |||||
| 15 | W10331728 | Clip, Air Duct |
|
$ 77.32 |
