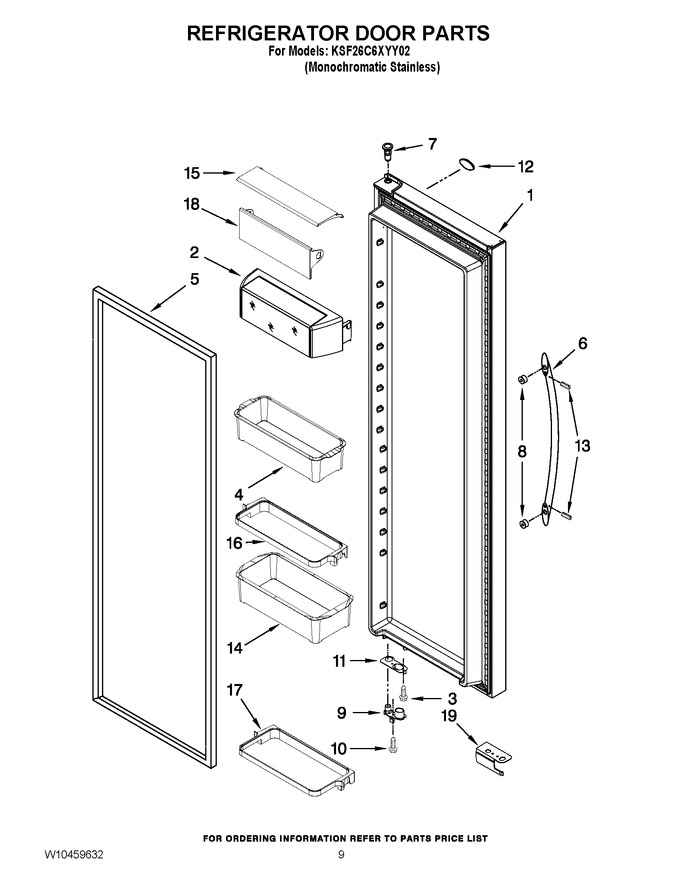

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10397030		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10316889)				$ 81.52
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
4	WPW10316461		Door Bin, Shallow   (Replaces: W10316461)				$ 73.74
5	W10355582		Door Gasket, Magnetic   (Replaces: W10249916)				$ 325.01
6	WPW10314517K		Handle   (Replaces: W10314517)				$ 231.78
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257203		Door Closer, Upper Cam   (Replaces: W10257203)				$ 12.34
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
11	W11037957		Bracket, Door Stop   (Replaces: W10247909)				$ 76.42
12	WPW10243391		Nameplate   (Replaces: W10243391)				$ 55.53
13	WP3400203		Set Screw   (Replaces: W10287054)			Immediately	$ 4.80
14	WPW10316457		Door Bin, Gallon   (Replaces: W10316457)			Immediately	$ 93.99
15	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 64.45
16	WPW10494333		Frame, Shallow Door Bin   (Replaces: W10438988)				$ 221.92
17	WPW10494334		Frame, Gallon Door Bin   (Replaces: W10438948)				$ 254.26
18	WPW10316885		Window, Door Compartment   (Replaces: W10316885)				$ 71.83
19	W11661847		Cover, Door Stop   (Replaces: W10257218)			Immediately	$ 30.20
