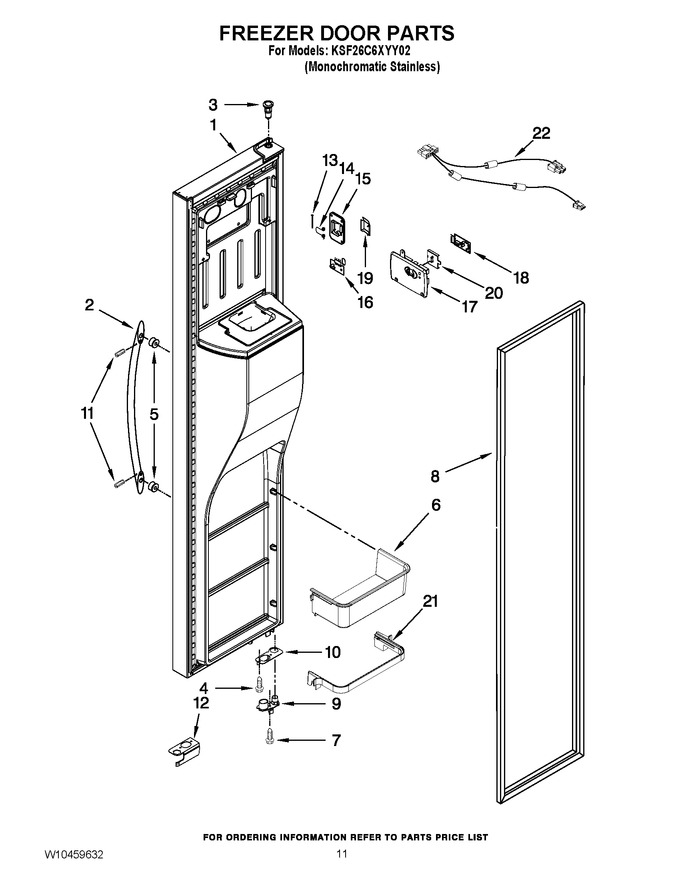

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10440053 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 2 | WPW10314517K | Handle (Replaces: W10314517) |
|
$ 231.78 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 7.76 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 6 | WPW10434529 | Door Bin (Replaces: W10434529) |
|
$ 74.08 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 8 | WPW10355585 | Door Gasket, Magnetic (Replaces: W10249917) |
|
$ 321.21 | |||||
| 9 | WPW10257206 | Door Closer, Upper Cam (Replaces: W10257206) |
|
Immediately | $ 12.55 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 65.91 | |||||
| 11 | WP3400203 | Set Screw (Replaces: W10287054) |
|
Immediately | $ 4.80 | ||||
| 12 | WPW10632062 | Cover, Door Stop (Replaces: W10257223) |
|
$ 7.19 | |||||
| 13 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 14 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 16 | W10870822 | P.c. Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 17 | W11763407 | Cover, Emitter (Replaces: W10258510) |
|
$ 42.38 | |||||
| 18 | W11813704 | P.c. Board, Receiver (Replaces: W10296530) |
|
Immediately | $ 313.30 | ||||
| 19 | WPW10258520 | Flipper (Replaces: W10258520) |
|
$ 75.86 | |||||
| 20 | W10258540 | Slide, Ice Make Shut Off |
|
$ 10.62 | |||||
| 21 | WPW10494336 | Frame, Door Bin (Replaces: W10439018) |
|
$ 232.01 | |||||
| 22 | W10242369 | Harness, Emitter & Receiver |
|
$ 126.27 |
