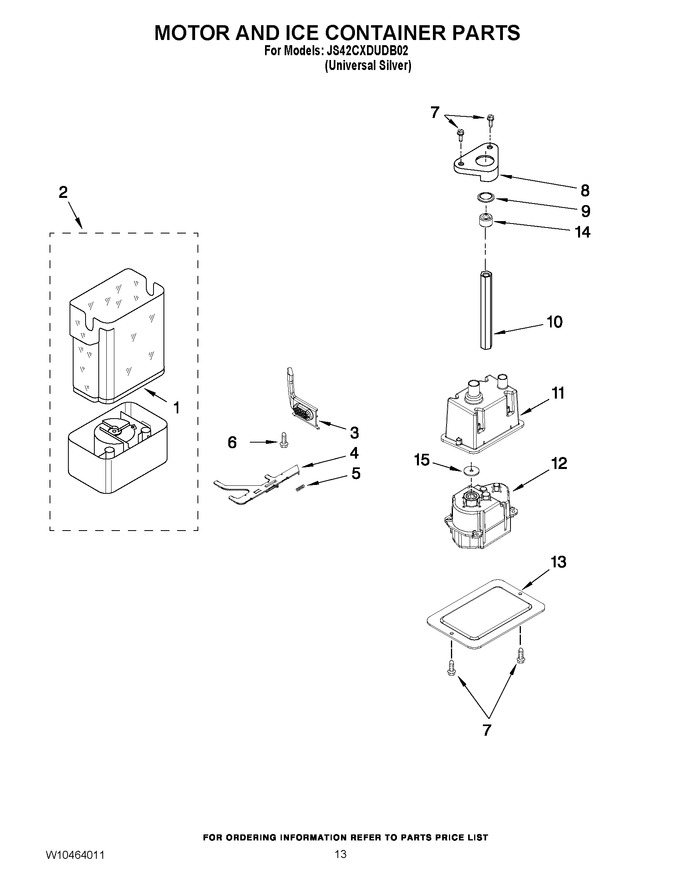

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222965		Ice Bin   (Replaces: 2222965)				$ 227.45
2	W10151247		Crusher Bin				$ 121.94
3	2266800		Button, Bin				$ 75.27
4	W10134783		Latch, Bin				$ 105.17
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
6	2198671		Screw				$ 10.92
7	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
8	WP2188919		Holder   (Replaces: 2188919)				$ 7.55
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
10	W11841865		Drive Shaft   (Replaces: 2318030)			Immediately	$ 115.26
11	W11404931		Enclosure, Motor   (Replaces: 2318011)			Immediately	$ 68.51
12	2315547		Dispenser, Motor		Appelez-nous	-
13	2318028		Cover				$ 107.79
14	WP2315559		Sleeve, Coupling   (Replaces: 2315559)			Immediately	$ 85.41
15	WPW10254073		Washer, Rubber   (Replaces: W10254073)			Immediately	$ 10.61

    View Diagram in Separate Window       Print Part List
