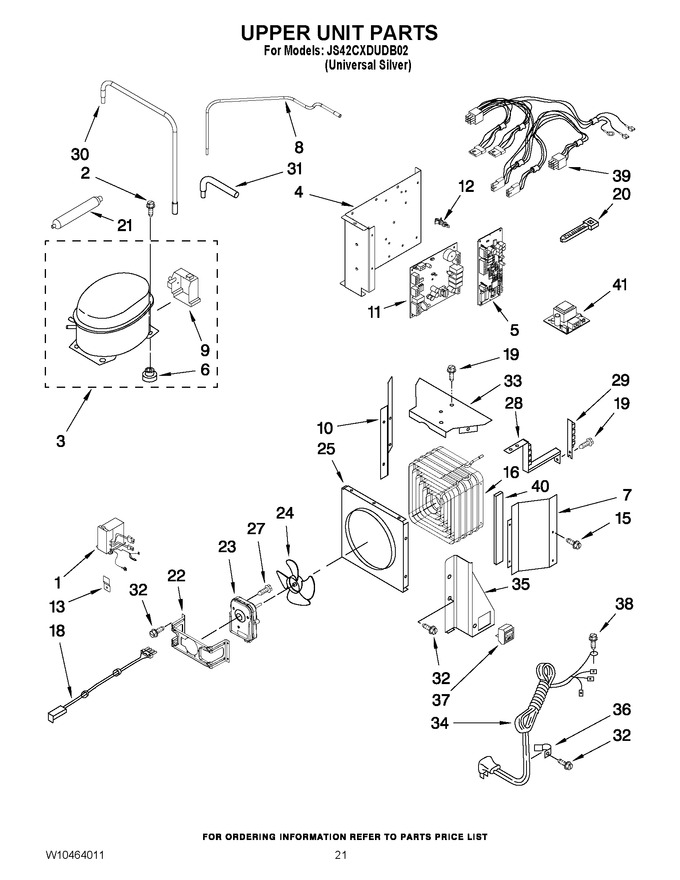

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 443.45
2	876811		Screw, Compressor Mounting   (Replaces: 489373)				$ 7.79
3	W10841139		Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit)   (Replaces: W10173296)			Immediately	$ 505.51
4	2318087		Housing, Control Board				$ 72.43
5	WP2318054		Control Board   (Replaces: 2318054)			Immediately	$ 314.13
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.79
7	W10415668		Support, Condenser (right)		Appelez-nous	-
8	W10234131		Tube, Tranisiton (cond/ht Loop)		Appelez-nous	-
9	2215676		Terminal Cover				$ 94.36
10	W10415666		Support, Condenser (left)		Appelez-nous	-
11	W10219462		Control Board				$ 342.77
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Box		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	2307998		Condenser				$ 510.05
18	2310207		Wire, Jumper		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 7.30
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	W10414681		Bracket, Fan Motor (condenser Fan)				$ 79.53
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	W10415670		Orifice, Fan		Appelez-nous	-
27	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
28	2317031		Bracket, Vibration (condenser)		Appelez-nous	-
29	2317030		Arm, Vibration (condenser)		Appelez-nous	-
30	2307566		Tube, Transition (condenser/drier)				$ 17.84
31	W10528578		Tube, Process   (Replaces: 2194319)				$ 39.82
32	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
33	2309000		Cover, Condenser		Appelez-nous	-
34	WP2310251		Service Cord   (Replaces: 2310251)				$ 88.94
35	W10185556		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp, Cord				$ 14.06
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
38	00487294		Screw, Ground   (Replaces: 487294)				$ 175.09
39	W10178860		Wiring Harness, Unit Compartment				$ 328.90
40	2309432		Gasket, Condenser		Appelez-nous	-
41	WP2259350		Power Supply, Ingredient Care Center   (Replaces: 2259350)				$ 145.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (7.50 Oz. (r-134a))		Appelez-nous	-
