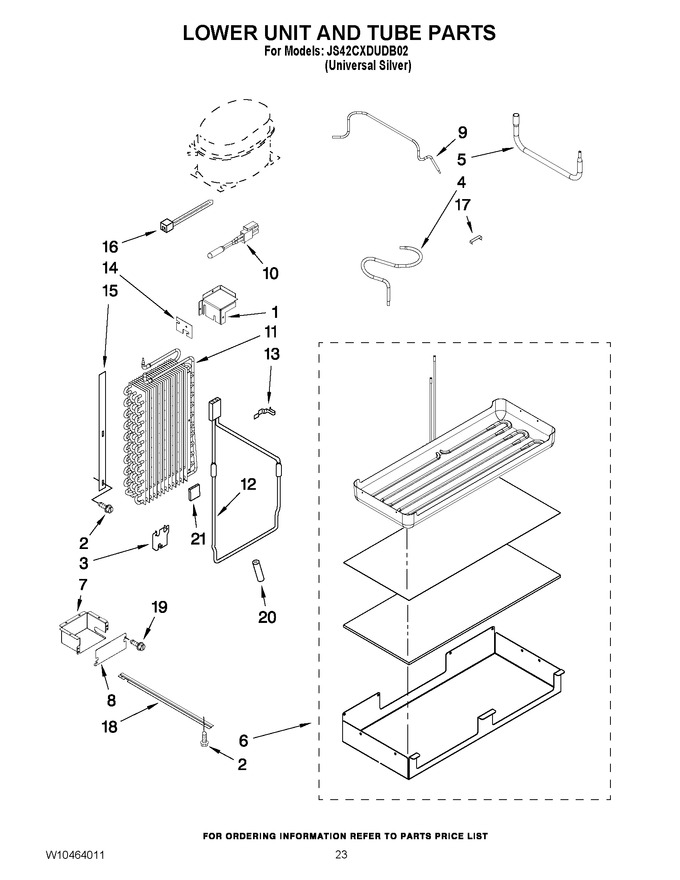

14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 14.02
3	W10157752		Bracket		Appelez-nous	-
4	W10306442		Suction Tube Oil Trap		Appelez-nous	-
5	W10388653		Tube, Connect (drier/restrictor)			Immediately	$ 38.55
6	W11623101		Drain Pan Assy.   (Replaces: W10281063)			Immediately	$ 375.26
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 77.64
8	W11756952		Cover, Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412488		Tube, Discharge				$ 114.93
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10205101		Evaporator   (Replaces: W10205101)			Immediately	$ 308.98
12	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 72.84
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10139908		Cover Seal, Evaporator Tubes				$ 12.44
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
20	2215648		Dampener				$ 12.58
21	W10267707		Insulation, Sound		Appelez-nous	-
