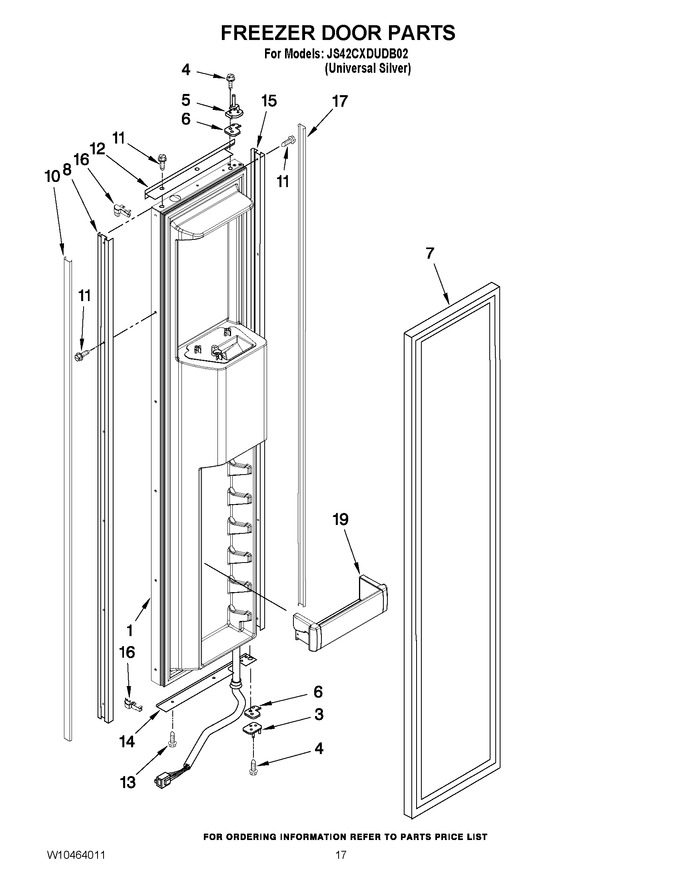

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292443 | Freezer Door (includes No.7) (universal Silver) |
|
- | |||||
| 3 | 2252294 | Hinge, Bottom (chrome) |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.02 | ||||
| 5 | 2252295 | Hinge, Top (chrome) |
|
$ 51.53 | |||||
| 6 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | WP2266905 | Door Gasket, Magnetic (Replaces: 2222814) |
|
Immediately | $ 313.96 | ||||
| 8 | 2309497S | Trim-door, Handle Side (stainless Steel) |
|
$ 307.64 | |||||
| 10 | 2314003S | Trim, Screw Cover Handle Side (stainless Steel) |
|
$ 166.31 | |||||
| 11 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.69 | ||||
| 11 | WP8281250 | Screw (stainless Steel) (Replaces: 8281250) |
|
$ 10.88 | |||||
| 12 | 2309489S | Trim-door, Top (stainless Steel) |
|
- | |||||
| 13 | W10759522 | Screw (Replaces: 488568) |
|
$ 7.75 | |||||
| 14 | 2309495S | Trim-door, Btm (stainless Steel) |
|
- | |||||
| 15 | 2309498S | Trim-door, Hinge Side (stainless Steel) |
|
$ 308.93 | |||||
| 16 | 2207457 | Trim, Corner (chrome) |
|
$ 54.40 | |||||
| 17 | 2259448S | Trim, Screw Cover Hinge Side (stainless Steel) |
|
$ 170.95 | |||||
| 19 | W10323602 | Bin, Door |
|
$ 93.36 |
