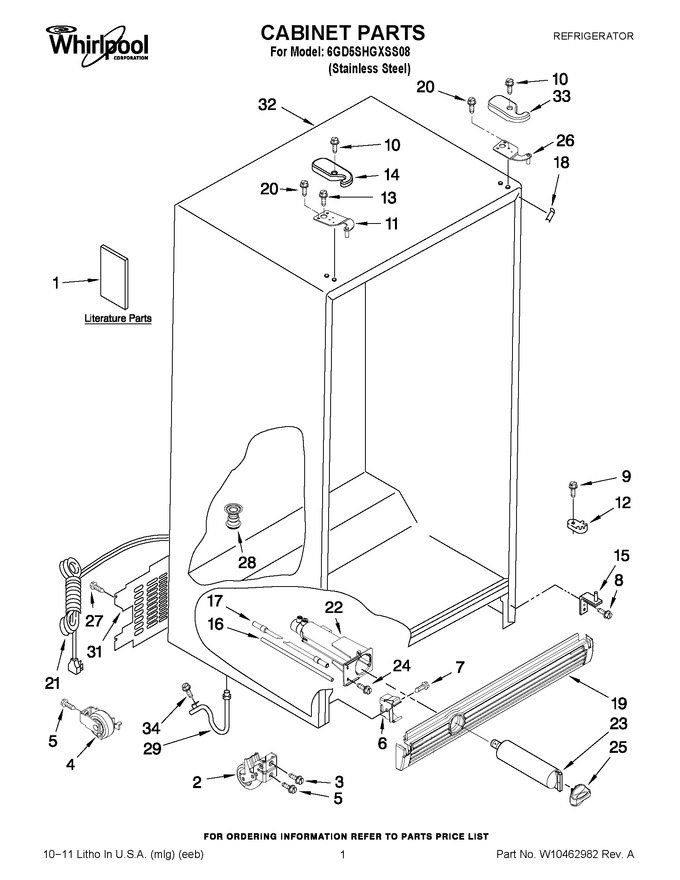

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10129871 | Use & Care Guide |
|
- | |||||
| 1 | W10142191 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2318270 | Energy Label |
|
- | |||||
| 1 | 628371 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller |
|
- | |||||
| 3 | W10850698 | Screw 5/16 X 1.440 (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Rear Roller (Replaces: W10250570) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw 1/4-20 X 5/8 (Replaces: W10146358) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WPW10141604 | Screw 8-32 X 3/8 (Replaces: W10141604) |
|
$ 8.85 | |||||
| 8 | WP489497 | Screw 12-24 X .818 (Replaces: W10142235) |
|
Immediately | $ 29.09 | ||||
| 9 | WP489483 | Screw 10-32 X 1/2 (Replaces: 489483) |
|
$ 11.41 | |||||
| 10 | WP8281227 | Screw 8-32 X 1/2 (Replaces: 8281227) |
|
$ 10.96 | |||||
| 11 | WP2203770 | Hinge, Top Fc (Replaces: 2203770) |
|
$ 100.30 | |||||
| 12 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 13 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 8281149) |
|
$ 11.40 | |||||
| 14 | WP2203407B | Hinge Cover (Replaces: 2203407B) |
|
$ 20.50 | |||||
| 15 | W10138965 | Hinge Bottom |
|
$ 93.91 | |||||
| 16 | WPW10350006 | Tube, Filter Outlet (Replaces: W10330344) |
|
$ 121.32 | |||||
| 17 | WP2304697 | Tube, Filter Inlet (Replaces: 2304697) |
|
$ 144.47 | |||||
| 18 | 2304848 | Filler, Wrapper |
|
- | |||||
| 19 | W10803964 | Grille (Replaces: W10283941) |
|
$ 134.09 | |||||
| 20 | WP489497 | Screw 12-24 X .700 (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 21 | W10199314 | Service Cord (Replaces: W10123616) |
|
- | |||||
| 22 | WP2186443 | Housing, Water Filter (Replaces: 2186443) |
|
Immediately | $ 97.35 | ||||
| 23 | EDR5RXD1B | Water Filter (Replaces: 4396508) |
|
Immediately | $ 49.99 | ||||
| 24 | WP489500 | Screw 10-32 X 5/8 (Replaces: 489500) |
|
$ 8.17 | |||||
| 25 | WP2186494B | Cap, Water Filter (Replaces: 2186494B) |
|
Immediately | $ 55.86 | ||||
| 26 | WP2203771 | Hinge Top, Rc (Replaces: 2203771) |
|
$ 103.13 | |||||
| 27 | WPW10141645 | Screw 8-15 X 1/2 (Replaces: W10141645) |
|
$ 8.05 | |||||
| 28 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 29 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 36.53 | |||||
| 31 | 2220758 | Cover, Unit |
|
- | |||||
| 32 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 33 | WP2203408B | Hinge Cover (Replaces: 2203408B) |
|
$ 19.56 | |||||
| 34 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 8.38 |
