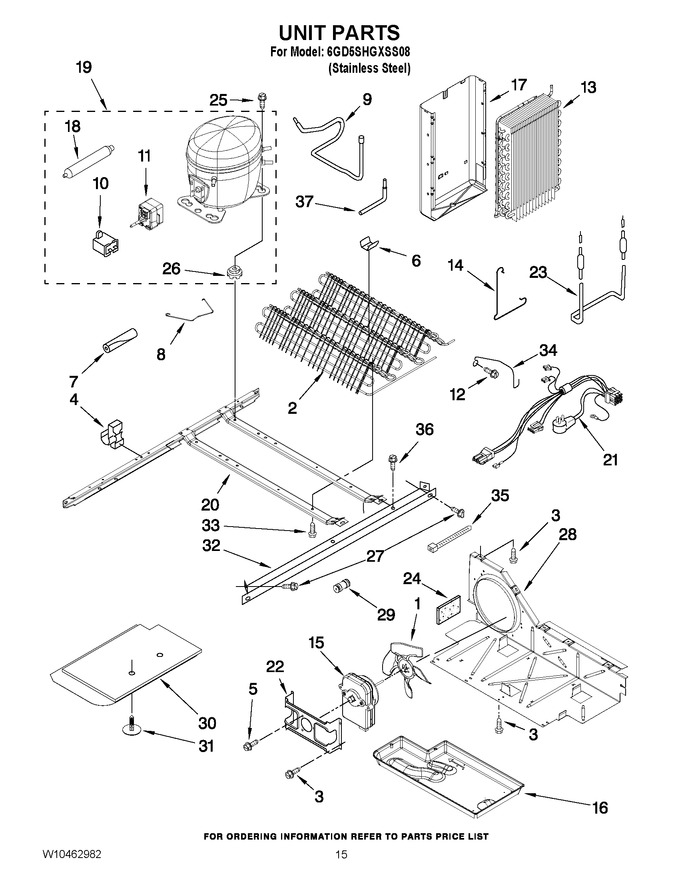

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 25.19
2	2324712		Condenser Assembly   (Replaces: W10121484)				$ 323.45
3	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 8.38
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 11.21
6	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
8	2302129		Strap, Bale		Appelez-nous	-
9	2205765		Tube Suction				$ 36.04
10	2321245		Capacitor		Appelez-nous	-
11	2312003		Start-device, Combination (start Relay And Overload)		Appelez-nous	-
12	WP489478		Screw 8-18 X 1/2   (Replaces: W10001260)				$ 8.18
13	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
14	2161324		Clamp		Appelez-nous	-
15	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 325.47
16	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
17	W10194475		Heat Shield		Appelez-nous	-
18	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 30.78
19	WP8201733		Compressor (includes Items 7, 10, 11, 18 & 26) (also Order 876765 Tube Kit)   (Replaces: W10120454)				$ 581.19
20	2304904		Unit Mounting Frame		Appelez-nous	-
21	W10123598		Unit, Harness		Appelez-nous	-
22	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
23	WPW10123653		Heater, Defrost   (Replaces: W10123653)				$ 164.49
24	2217070		Foam Pad				$ 22.08
25	876811		Screw 1/4-28 X .90   (Replaces: 489373)				$ 7.79
26	876811		Grommet   (Replaces: 1100826)				$ 7.79
27	489340		Screw 5/16 X .63		Appelez-nous	-
28	W10896764		Air Baffle   (Replaces: W10411518)				$ 101.20
29	WPW10334458		Connector, Water Tube   (Replaces: W10271540)				$ 22.67
30	2304899		Unit Cover, Bottom		Appelez-nous	-
31	489396		Clip				$ 11.26
32	2305374		Unit Mounting Rail				$ 84.67
33	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 14.35
34	2186495		Guard, Fan		Appelez-nous	-
35	WPW10339879		Strap   (Replaces: 2172840)				$ 8.30
36	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.84
37	W10325116		Tube, Process		Appelez-nous	-
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (0.142 Kg (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
