01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

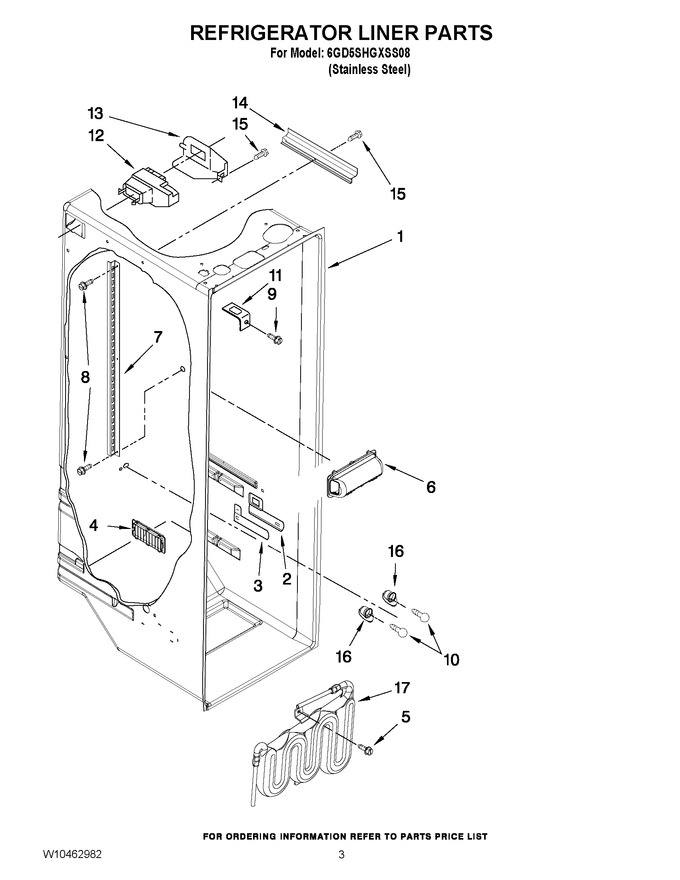

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W10141518		Screw 8-15 X 3/4				$ 9.54
6	W11239891		Shield Assy, Light   (Replaces: W10242623)				$ 101.52
7	2319866		Ladder, Shelf				$ 22.16
8	WP489478		Screw 8-18 X 1/2   (Replaces: W10001260)				$ 8.18
9	WP488488		Screw, 8-18 X 1/2   (Replaces: 489290)				$ 8.52
10	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
11	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
12	WPW10151378		Air Diffuser Assy   (Replaces: W10151378)				$ 327.13
13	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 138.15
14	2150331		Cover, Conduit				$ 25.62
15	W10759522		Screw 8-15 X 3/4   (Replaces: W10004810)				$ 8.24
16	W11447232		Socket   (Replaces: W10134764)			Immediately	$ 13.87
17	WPW10276792		Reservoir   (Replaces: 2307107)				$ 144.45

    View Diagram in Separate Window       Print Part List
