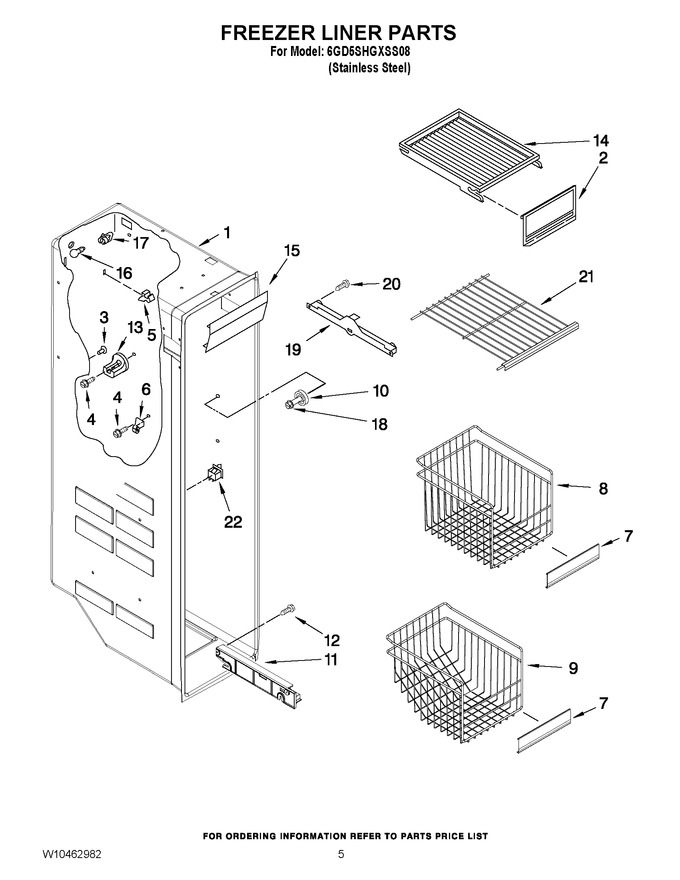

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2171713 | Door, Ice Compartment (Replaces: 2171713) |
|
$ 91.63 | |||||
| 3 | 2176134 | Grommet |
|
$ 5.83 | |||||
| 4 | W10142289 | Screw 8-18 X 5/8 |
|
$ 9.61 | |||||
| 5 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.94 | |||||
| 6 | 2196206 | Support, Stud |
|
- | |||||
| 7 | 2195905 | Trim, Basket |
|
$ 38.60 | |||||
| 8 | 2301190 | Basket, Tall |
|
$ 90.43 | |||||
| 9 | 2301191 | Basket, Slope |
|
$ 96.19 | |||||
| 10 | W11527119 | Stud Assembly (includes Item 18) (Replaces: W10173127) |
|
- | |||||
| 11 | 2261449 | Slide, Basket (right Side) |
|
$ 46.07 | |||||
| 11 | 2261448 | Slide, Basket (left Side) |
|
$ 46.07 | |||||
| 12 | W10759522 | Screw 8-15 X 3/4 (Replaces: W10004810) |
|
$ 8.24 | |||||
| 13 | 2196207 | Stud, Rear |
|
$ 7.61 | |||||
| 14 | 2171714 | Shelf, Top Compartment |
|
- | |||||
| 15 | 2171705 | Light Lens |
|
$ 94.68 | |||||
| 16 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 17 | W11447232 | Light Socket (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 18 | W10191952 | Screw 8-18 X 1-3/8 |
|
$ 5.65 | |||||
| 19 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 139.41 | |||||
| 19 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 130.12 | |||||
| 20 | 718257 | Screw 8-15 X 1-3/8 (Replaces: 489100) |
|
- | |||||
| 21 | WP2174267 | Shelf (Replaces: 2174267) |
|
$ 93.35 | |||||
| 22 | W11457217 | Switch, Rocker (Replaces: 2321285) |
|
$ 40.09 |
