SELECT A DIAGRAM

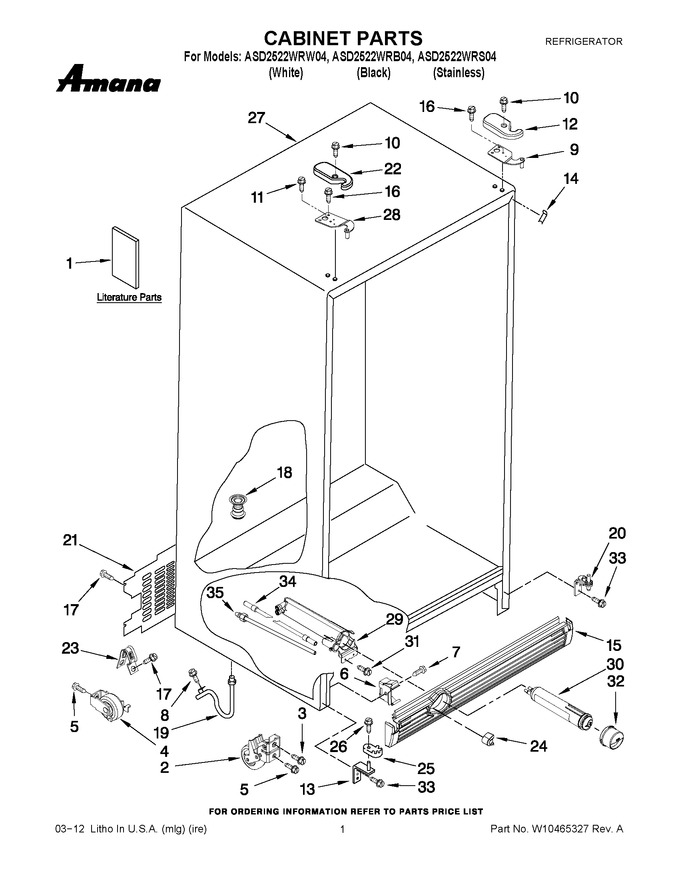

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10305231		Instruction Sheet, Door Removal		Appelez-nous	-
1	W10237701		Use & Care Guide		Appelez-nous	-
1	W10207987		Service & Wiring Sheet		Appelez-nous	-
1	W10307453		Energy Guide		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller		Appelez-nous	-
3	W10850698		Screw 5-16 X 1.440   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Rear Roller   (Replaces: W10250570)				$ 40.17
5	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WPW10141604		Screw 8-32 X 3/8   (Replaces: W10141604)				$ 8.43
8	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 7.83
9	WP2203771		Hinge Top Rc   (Replaces: 2203771)				$ 98.22
10	WP8281227		Screw 8-32 X 1/2   (Replaces: 8281227)				$ 10.44
11	WP489128		Screw 8-32 X 3/8   (Replaces: 8281149)				$ 10.88
12	WP2203408W		Hinge Cover Rc (white)   (Replaces: 2203408W)				$ 20.97
12	WP2203408B		Hinge Cover Rc (black)   (Replaces: 2203408B)				$ 18.63
13	W10138965		Hinge Bottom				$ 89.44
14	2304848		Filler Wapper (black)		Appelez-nous	-
14	2304846		Filler Wapper (white)		Appelez-nous	-
15	WPW10311032		Grille (white)   (Replaces: 2303292W)				$ 161.58
15	WPW10311033		Grille (black)   (Replaces: 2303292B)				$ 176.10
16	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
17	WPW10141645		Screw 8-15 X 1/2   (Replaces: W10141645)				$ 7.67
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
20	W10219817		Hinge Assembly		Appelez-nous	-
21	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
22	WP2203407B		Hinge Cover Fc (black)   (Replaces: 2203407B)				$ 19.52
22	WP2203407W		Hinge Cover Fc (white)   (Replaces: 2203407W)				$ 20.75
23	549193		Clamp, Service Cord				$ 13.39
24	WP2260503B		Button, Filter (black)   (Replaces: 2260503B)				$ 72.78
24	2260503W		Button, Filter (white)			Immediately	$ 34.16
25	WPW10329686		Door Closer, Lower Cam   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw 10-32 X 1/2   (Replaces: 489483)				$ 10.87
27	N/P		Cabinet (not Serviced)		Appelez-nous	-
28	WP2203770		Hinge Top, Fc   (Replaces: 2203770)				$ 95.52
29	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
30	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
31	WP489500		Screw 10-32 X 5/8   (Replaces: 489500)				$ 7.78
32	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
32	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
33	WP489497		Screw 12-24 X .818   (Replaces: W10142235)			Immediately	$ 29.09
34	W10281289		Tube, Filter Inlet				$ 57.80
35	WPW10350006		Tube, Filter Outlet   (Replaces: W10330344)				$ 115.54

    View Diagram in Separate Window       Print Part List
