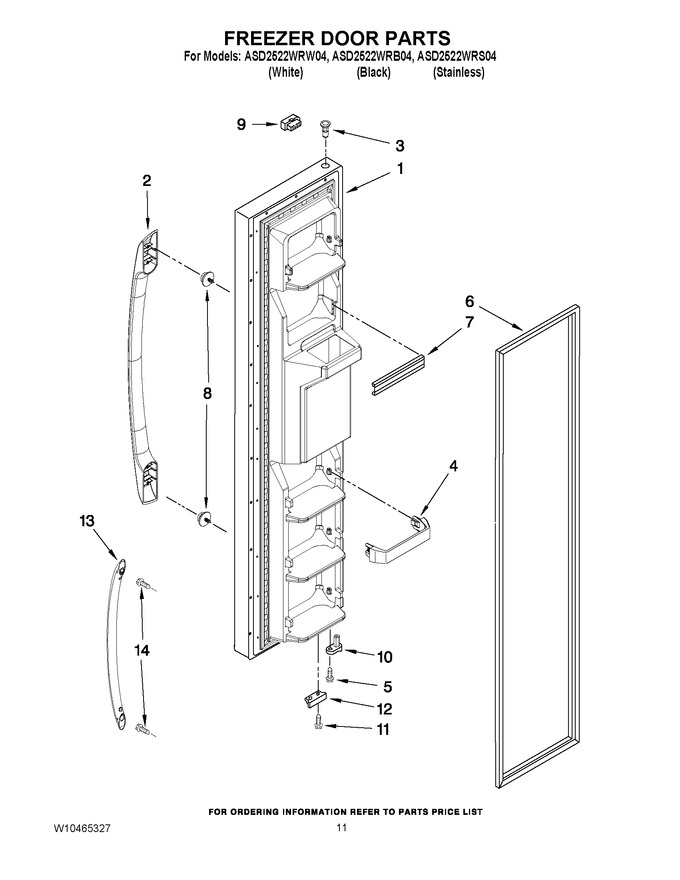

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204968B		Freezer Door (includes Item 6 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10315991		Freezer Door (includes Item 6 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10204968W		Freezer Door (includes Item 6 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10119666		Handle (white)				$ 104.36
2	WPW10119668		Handle (black)   (Replaces: W10119668)				$ 189.04
3	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
4	WP2309718		Trim, Door   (Replaces: 2309718)				$ 61.49
5	WP3400012		Screw 10-32 X 1/2   (Replaces: W10142285)				$ 8.26
6	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
6	2159074		Door Gasket, Magnetic Mist Beige (for White Model)   (Replaces: 2221303)				$ 325.70
7	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
8	WPW10288153		Handle Stud   (Replaces: W10288153)			Immediately	$ 9.65
9	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WPW10142233		Screw 10-32 X 1/2   (Replaces: W10142233)				$ 8.93
12	W10219814		Bracket, Door Stop (black)		Appelez-nous	-
12	W10219813		Bracket, Door Stop Zinc (for White Model)		Appelez-nous	-
13	W11690159		Handle (for Stainless Model)   (Replaces: W10136871)				$ 173.76
14	WPW10170540		Screw 8-15 X .785   (Replaces: W10170540)			Immediately	$ 8.51
