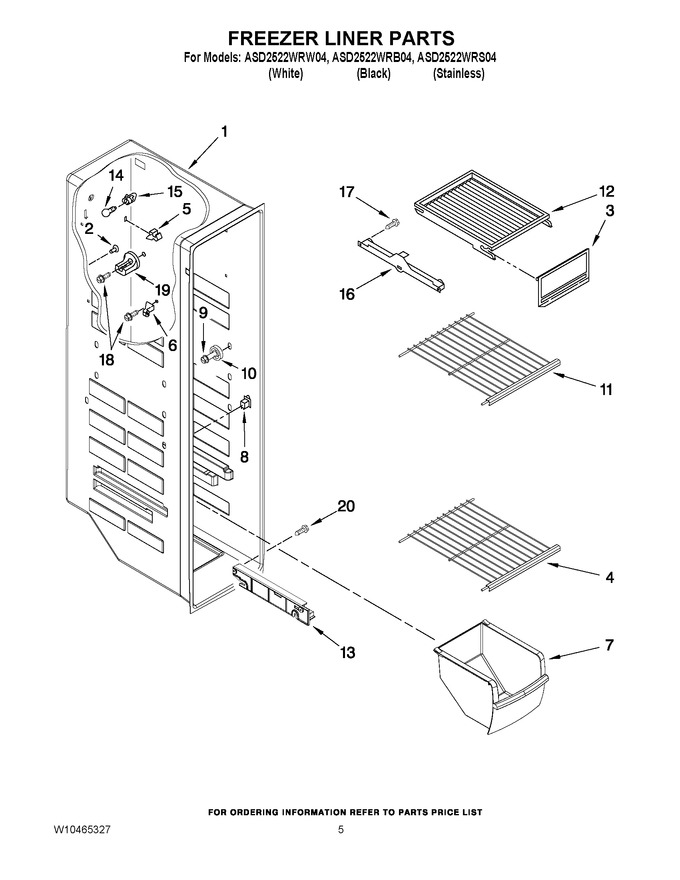

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	2176134		Grommet				$ 5.83
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 91.63
4	WP2174267		Shelf, Wire   (Replaces: 2174267)				$ 93.35
5	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
6	2196206		Support, Stud		Appelez-nous	-
7	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 147.22
8	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
9	W10191952		Screw 8-18 X 1-3/8				$ 5.65
10	W11527119		Stud Assembly (includes Item 9)   (Replaces: W10173127)		Appelez-nous	-
11	2174268		Shelf, Wire				$ 38.12
12	2171714		Shelf, Top Compartment		Appelez-nous	-
13	2261449		Slide, Basket (right Side)				$ 46.07
13	2261448		Slide, Basket (left Side)				$ 46.07
14	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
15	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
17	718257		Screw 8-15 X 1-3/8   (Replaces: 489100)		Appelez-nous	-
18	W10142289		Screw 8-18 X 5/8				$ 9.61
19	2196207		Stud, Rear				$ 7.61
20	W10759522		Screw 8-15 X 3/4   (Replaces: W10004810)				$ 8.24
