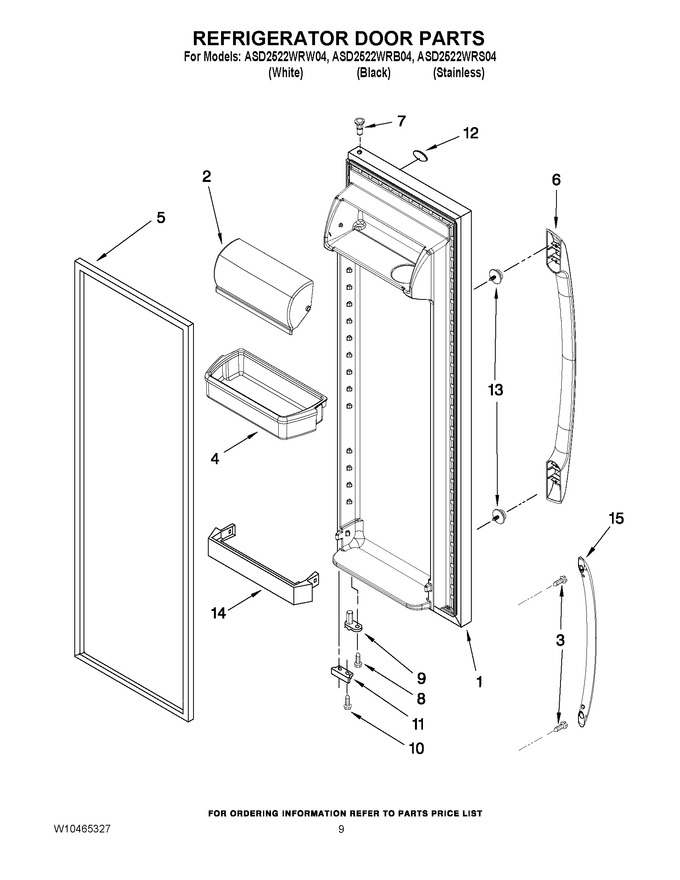

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10173409 | Refrigerator Door (includes Item 5) (black) |
|
- | |||||
| 1 | W10173407 | Refrigerator Door (includes Item 5) (white) |
|
- | |||||
| 1 | W10318321 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10170540 | Screw 8-15 X .785 (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 4 | WPW10321304 | Door Bin (for Stainless Model) (Replaces: 2304235) |
|
Immediately | $ 44.73 | ||||
| 4 | WP2187172 | Door Bin (for White And Black Models) (Replaces: 2187172) |
|
Immediately | $ 45.09 | ||||
| 5 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 5 | 2159075 | Door Gasket, Magnetic Mist Beige (for White Model) (Replaces: 2221302) |
|
Immediately | $ 333.00 | ||||
| 6 | W10119665 | Handle (black) |
|
$ 75.66 | |||||
| 6 | W10119663 | Handle (white) |
|
$ 75.72 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 8 | WP3400012 | Screw 10-32 X 1/2 (Replaces: W10142285) |
|
$ 8.26 | |||||
| 9 | WP2182179 | Door Closer (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WPW10142233 | Screw 10-32 X 1/2 (Replaces: W10142233) |
|
$ 8.93 | |||||
| 11 | W10219811 | Bracket, Door Stop Zinc (for White Model) |
|
$ 25.43 | |||||
| 11 | W10219812 | Bracket, Door Stop (black) |
|
$ 24.48 | |||||
| 12 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 13 | WPW10288153 | Handle Stud (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 14 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 15 | W11690159 | Handle (for Stainless Model) (Replaces: W10136871) |
|
$ 173.76 |
