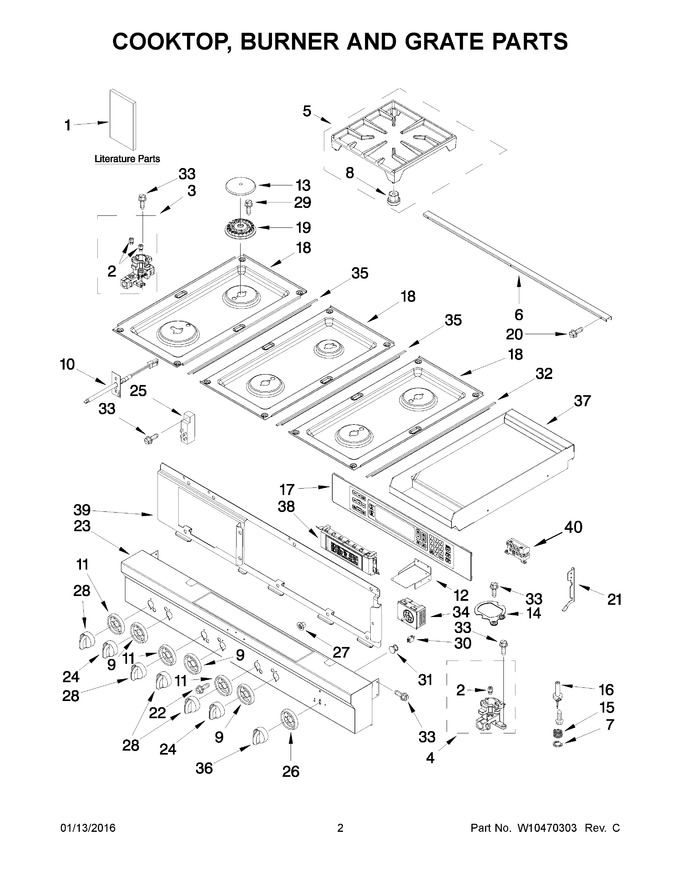

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403305 | Sheet, Tech (english) |
|
- | |||||
| 2 | W10340424 | Orifice (17k) (left Front & Right Front - High) |
|
$ 93.67 | |||||
| 3 | WPW10364555 | Assembly, Orifice Holder (left Front, Right Front) (Replaces: W10364555) |
|
$ 113.42 | |||||
| 4 | WPW10364556 | Assembly, Orifice Holder (left Rear, Right Rear, Center Front) (Replaces: W10364556) |
|
$ 102.39 | |||||
| 5 | WPW10115928 | Grate, Burner (Replaces: W10115928) |
|
$ 201.41 | |||||
| 6 | W10269216 | Trim, Island |
|
- | |||||
| 7 | 8286863 | Spring, Electrode |
|
$ 76.92 | |||||
| 8 | W10185266 | Bumper, Grate (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 55.11 | |||||
| 10 | W10319835 | Sensor, Griddle |
|
$ 239.28 | |||||
| 11 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10498407 | Bracket, Spark Module |
|
$ 78.97 | |||||
| 13 | WPW10256034 | Cap, Burner (black (left Front, Right Front)) (Replaces: W10256034) |
|
$ 138.19 | |||||
| 14 | 8286930 | Gasket, Orifice |
|
$ 95.73 | |||||
| 15 | W10256046 | Spring, Electrode |
|
$ 11.56 | |||||
| 16 | W10833887 | Electrode, Burner (Replaces: W10256047) |
|
Immediately | $ 31.77 | ||||
| 17 | WPW10116105 | Keypad (Replaces: W10116105) |
|
$ 555.00 | |||||
| 18 | W10352969 | Cooktop (black (left)) |
|
$ 335.75 | |||||
| 19 | W11106799 | Spreader, Flame (left Front, Right Front) (Replaces: W10495853) |
|
Immediately | $ 89.01 | ||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 23 | W10115885 | Assembly, Console |
|
- | |||||
| 24 | W11244176 | Knob (Replaces: W10250389) |
|
$ 78.37 | |||||
| 25 | W11601369 | Reignitor (Replaces: W10116108) |
|
Immediately | $ 67.35 | ||||
| 26 | W10261515 | Bezel, Griddle |
|
- | |||||
| 27 | 7103P166-60 | Nut |
|
$ 18.56 | |||||
| 28 | W11177673 | Knob (Replaces: W10250391) |
|
$ 90.55 | |||||
| 29 | WPW10373929 | Screw (Replaces: W10373929) |
|
$ 43.65 | |||||
| 30 | W10116151 | Housing, Indicator Light |
|
$ 79.16 | |||||
| 31 | W10116115 | Lens, Indicator Light |
|
$ 7.86 | |||||
| 32 | W10291193 | Trim, L-strip |
|
- | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 34 | WPW10116113 | Control, Griddle (Replaces: W10116113) |
|
$ 351.97 | |||||
| 35 | W10271524 | T-strip |
|
$ 212.34 | |||||
| 36 | W10250390 | Knob, Griddle |
|
$ 36.98 | |||||
| 37 | W10625221 | Module, Griddle |
|
$ 1,457.32 | |||||
| 38 | W10533030 | Interface, User |
|
$ 410.38 | |||||
| 39 | W10250477 | Bracket, User Interface |
|
- | |||||
| 40 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 238.24 | ||||
| 13A | WPW10256032 | Cap, Burner (black (left Rear, Right Rear, Center Front)) (Replaces: W10256032) |
|
Immediately | $ 88.38 | ||||
| 13B | WPW10364463 | Cap, Burner (black (center Rear)) (Replaces: W10364463) |
|
Immediately | $ 55.85 | ||||
| 16A | 8286724 | Electrode & Wiring |
|
$ 30.12 | |||||
| 18A | W10352966 | Cooktop (black (center)) |
|
$ 320.43 | |||||
| 18B | W10352967 | Cooktop (black (right)) |
|
$ 337.26 | |||||
| 19A | WPW10256027 | Spreader, Flame (left Rear, Right Rear, Center Front) (Replaces: W10256027) |
|
Immediately | $ 101.02 | ||||
| 19B | WPW10282515 | Spreader, Flame (center Rear) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 1A | W10403306 | Sheet, Tech (french) |
|
- | |||||
| 1B | W10399383 | Guide, Use & Care |
|
- | |||||
| 1C | W10526083 | Instructions, Installation |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 21A | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 2A | W10819958 | Orifice (1.2k) (left Front & Right Front - Low) (Replaces: W10256132) |
|
$ 97.77 | |||||
| 2B | W11051480 | Orifice (15k) (left Rear, Right Rear, Center Front) (Replaces: W10364221) |
|
$ 90.69 | |||||
| 2C | WPW10256128 | Orifice (5k) (center Rear) (Replaces: W10256128) |
|
$ 100.45 | |||||
| 4A | W10282659 | Assembly, Orifice Holder (center Rear) |
|
$ 40.50 |
