SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts

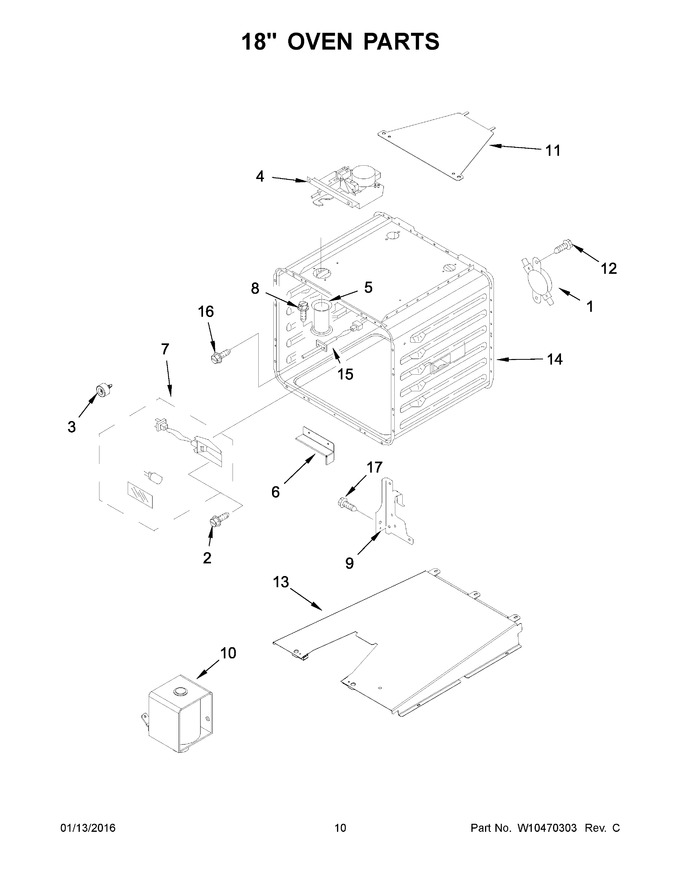

06 - 18" Oven Parts


07 - Top Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	4449748		Screw				$ 14.23
3	W10105790		Bumper & Screw				$ 7.41
4	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 327.65
5	W10288078		Tube, Vent				$ 116.85
6	W10284001		Cover, Bake 18		Appelez-nous	-
7	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 116.01
8	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
10	W10273653		Vent, Cooling Bottom		Appelez-nous	-
11	W10160858		Cover, Latch				$ 76.94
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10160897		Vent, Cooling Top		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
16	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9A	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688722		Insulation, Wrap, 18   (Replaces: W10115993)		Appelez-nous	-
NI	W10145745		Insulation, Back, 18		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
