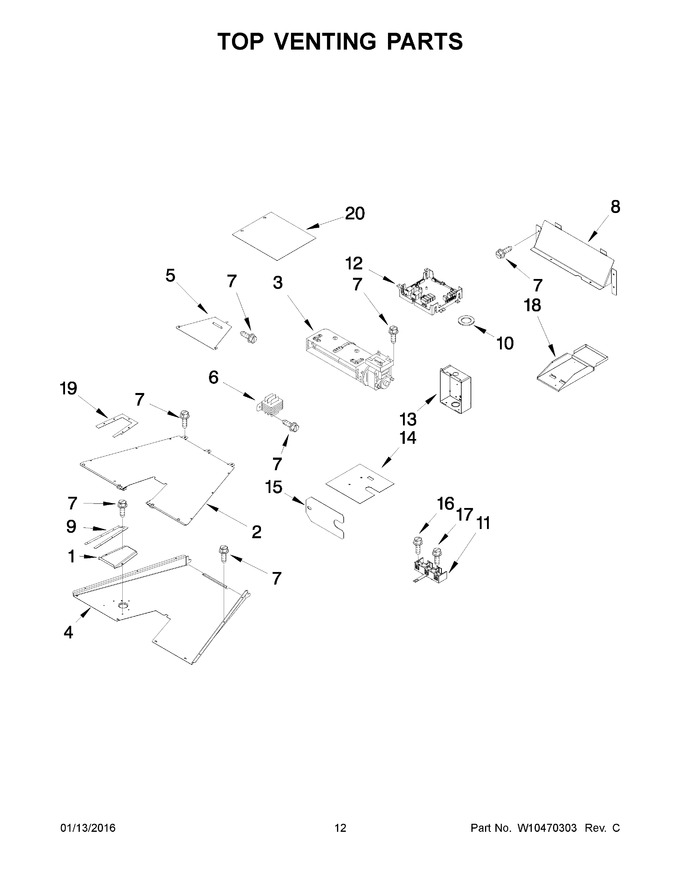

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10226008 | Slope, Exhaust Vent (18") |
|
- | |||||
| 2 | W10160896 | Vent, Cooling Top |
|
- | |||||
| 3 | WPW10245511 | Blower 60mm (Replaces: W10245511) |
|
Immediately | $ 306.02 | ||||
| 4 | W10246078 | Vent, Cooling Bottom |
|
- | |||||
| 5 | W10160875 | Plate, Cooling Latch |
|
- | |||||
| 6 | 9762885 | Transformer, Control |
|
$ 174.77 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | W10160844 | Bracket, Blower |
|
- | |||||
| 9 | W10270402 | Seal, Vent Slope (18") |
|
- | |||||
| 10 | W10270396 | Seal, Chimney |
|
- | |||||
| 11 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 12 | W10825621 | Manager, Appliance |
|
- | |||||
| 13 | W10467022 | Box, Terminal |
|
- | |||||
| 14 | 9759721 | Insulator, Terminal Box |
|
- | |||||
| 15 | W10618712 | Cover, Channel |
|
- | |||||
| 16 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 7.30 | |||||
| 17 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 18 | W10249337 | Support, Control |
|
- | |||||
| 19 | W10270397 | Seal, Vent Slope (30") |
|
- | |||||
| 20 | W10239444 | Seal, Control |
|
- | |||||
| 1A | W10246075 | Slope, Exhaust Vent (30") |
|
- |
