SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

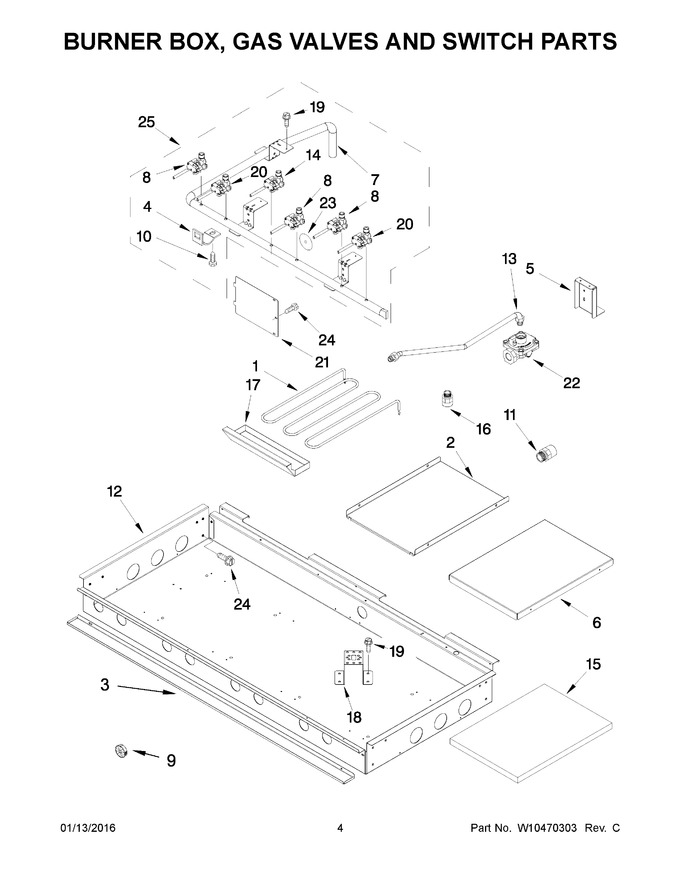

03 - Burner Box, Gas Valves And Switch Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Top Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138296		Element, Griddle		Appelez-nous	-
2	W10145620		Tray, Element Griddle		Appelez-nous	-
3	W10269213		Drip, Tray 48		Appelez-nous	-
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 73.99
5	W10115850		Bracket, Pressure Regulator		Appelez-nous	-
6	W10246074		Tray, Griddle Insulation		Appelez-nous	-
7	W10250421		Manifold		Appelez-nous	-
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 340.85
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw				$ 6.82
11	4453116		Adapter, Male				$ 179.43
12	W10371517		Box, Burner		Appelez-nous	-
13	W10452066		Tube, Pressure Regulator		Appelez-nous	-
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 332.10
15	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
16	4453115		Adapter, Female				$ 126.70
17	W10276497		Tray, Griddle Drip				$ 404.03
18	W10560553		Bracket, Burner		Appelez-nous	-
19	4450800		Screw, Grounding				$ 13.47
20	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W10293267		Regulator, Pressure				$ 313.91
23	W10189177		Seal, Switch Cover				$ 10.00
24	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
25	W10402612		Assembly, Manifold		Appelez-nous	-
NI	WPW10353133		Tubing, Gas (right Rear)   (Replaces: W10353133)				$ 174.89
NI	W10353141		Tubing, Gas (right Front)				$ 175.16
NI	W10353152		Tubing, Gas (center Front)				$ 78.93
NI	W10353154		Tubing, Gas (left Front)			Immediately	$ 172.78
NI	W10280797		Tubing, Gas (left Rear)		Appelez-nous	-
NI	W11688741		Insulation, Burner Box   (Replaces: W10160202)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
