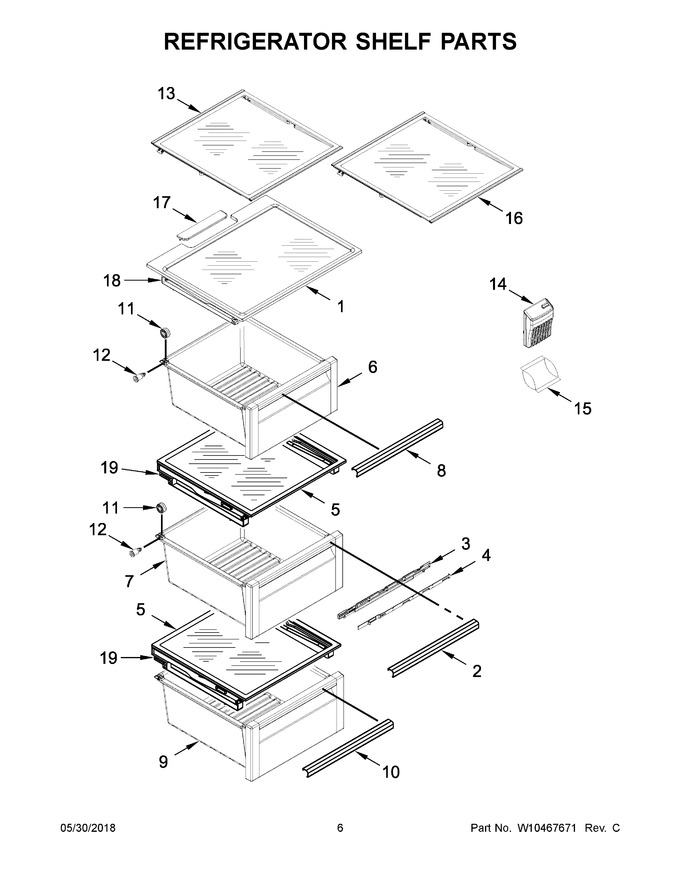

04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10440265		Cover, Assembly   (Replaces: W10440265)				$ 257.99
2	WPW10531023		Trim, Handle   (Replaces: W10531023)				$ 109.41
3	W10257334		Slide, Humidity				$ 61.15
4	W10316452		Housing, Humidity				$ 92.65
5	WPW10440266		Cover, Assembly   (Replaces: W10440266)				$ 286.90
6	WPW10542037		Pan, Snack   (Replaces: W10542037)			Immediately	$ 329.54
7	WPW10531081		Pan, Crisper   (Replaces: W10531081)			Immediately	$ 207.11
8	WPW10542020		Trim, Handle   (Replaces: W10542020)				$ 116.28
9	WPW10531082		Pan, Meat   (Replaces: W10531082)				$ 148.02
10	WPW10531022		Trim, Handle   (Replaces: W10531022)				$ 108.10
11	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
12	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
13	W11300659		Assembly, Shelf   (Replaces: W10315527)			Immediately	$ 255.75
14	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 32.61
15	W10346771		Filter, Produce Preserver		Appelez-nous	-
16	WPW10440265		Assembly, Shelf   (Replaces: W10387406)				$ 257.99
17	W10392412		Shelf, Filler (grey)		Appelez-nous	-
18	W11766461		Rail, Track (left Side)   (Replaces: W10247942)				$ 35.54
19	W10257433		Rail, Track (left Side)		Appelez-nous	-
18A	W11678966		Rail, Track (right Side)   (Replaces: W10247940)				$ 22.68
19A	W10257431		Rail, Track (right Side)				$ 115.72
