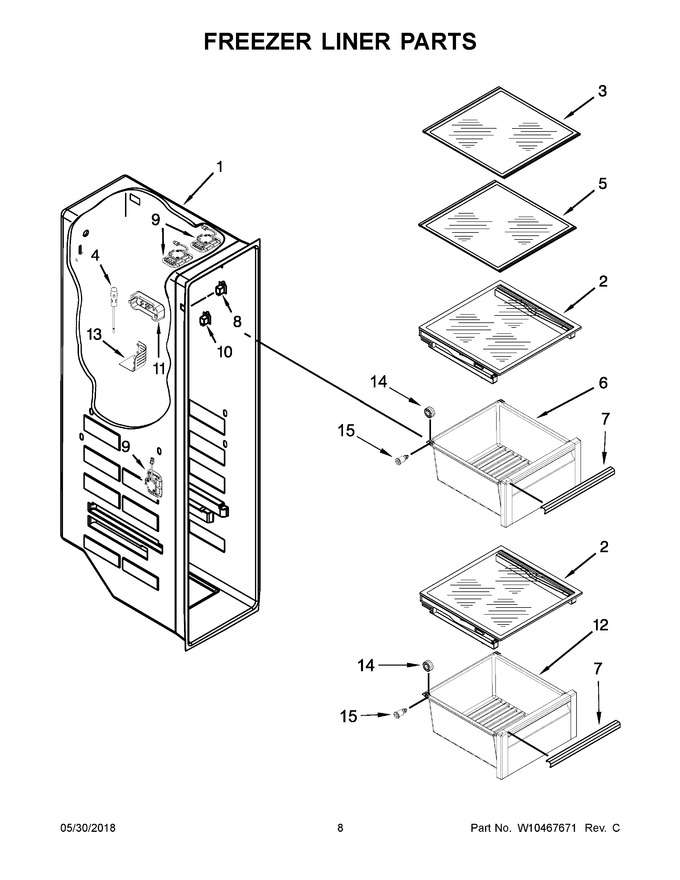

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10362174 | Assembly, Cover (Replaces: W10362174) |
|
$ 230.71 | |||||
| 3 | W11217335 | Shelf, Glass Upper (Replaces: W10315529) |
|
$ 243.29 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 32.00 | ||||
| 5 | W11217336 | Shelf, Glass Lower (Replaces: W10315530) |
|
$ 236.13 | |||||
| 6 | W10861754 | Pan, Freezer Upper (Replaces: W10542036) |
|
$ 116.98 | |||||
| 7 | W10542018 | Trim, Handle |
|
$ 110.06 | |||||
| 8 | W11396033 | Switch, Rocker Arm (Replaces: W10656771) |
|
Immediately | $ 37.30 | ||||
| 9 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 259.02 | ||||
| 10 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 34.91 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 84.17 | ||||
| 12 | W11607156 | Pan, Freezer Lower (Replaces: W10542035) |
|
$ 100.29 | |||||
| 13 | W10260382 | Cover, Light |
|
$ 76.74 | |||||
| 14 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.99 | ||||
| 15 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 34.80 |
