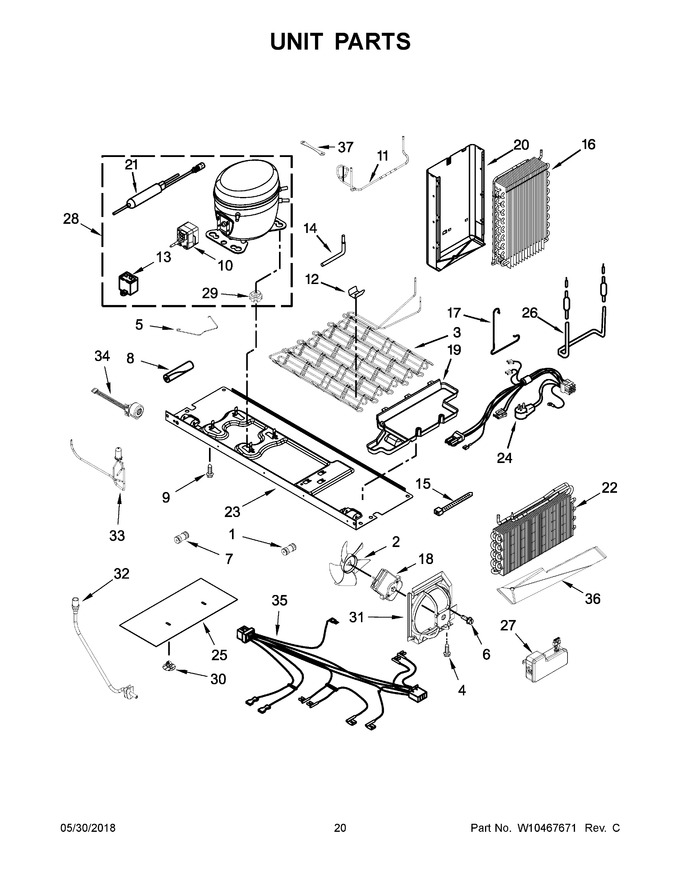

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 66.26 | ||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 258.28 | |||||
| 4 | WP489399 | Screw (Replaces: W10142231) |
|
$ 6.95 | |||||
| 5 | W10204187 | Strap, Bale |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.06 | ||||
| 7 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 33.74 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 9 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.97 | ||||
| 10 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 11 | WPW10223328 | Tube, Suction (Replaces: W10223328) |
|
$ 88.43 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 13 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 7.72 | |||||
| 16 | WPW10239732 | Evaporator (Replaces: W10239732) |
|
Immediately | $ 335.86 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 113.96 | ||||
| 19 | W10714793 | Tray, Evaporator |
|
$ 156.50 | |||||
| 20 | W10376319 | Shield, Heat (Replaces: W10343824) |
|
$ 110.46 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | WPW10643261 | Evaporator, Dual-rc (Replaces: W10643261) |
|
Immediately | $ 327.09 | ||||
| 23 | W10277704 | Basepan |
|
$ 169.00 | |||||
| 24 | WPW10261232 | Cord, Power (Replaces: W10261232) |
|
$ 63.71 | |||||
| 25 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 26 | W10857624 | Heater, Defrost (Replaces: W10495968) |
|
$ 135.00 | |||||
| 27 | W11038857 | Supply, Led Power (Replaces: W10724241) |
|
$ 346.58 | |||||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces: W10253005) |
|
Immediately | $ 559.32 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 30 | W10296661 | Clip, Bottom Cover |
|
$ 16.93 | |||||
| 31 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 80.76 | |||||
| 32 | W11409190 | Tube, Drain (Replaces: W10223368) |
|
Immediately | $ 62.23 | ||||
| 33 | W11590197 | Assembly, Valve Body (Replaces: W10331270) |
|
Immediately | $ 108.68 | ||||
| 34 | WPW10364560 | Coil, 3 Way Valve (Replaces: W10364560) |
|
$ 215.12 | |||||
| 35 | W11676780 | Assembly, Unit Wire (Replaces: W10670174) |
|
$ 74.01 | |||||
| 36 | W11720794 | Pan, Drip (Replaces: W10317862) |
|
$ 140.94 | |||||
| 37 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz. (r-134a) |
|
- | |||||
| NI | SF5516 | Valve, Access (5/16") (Replaces: 978026) |
|
Immediately | $ 18.94 |
