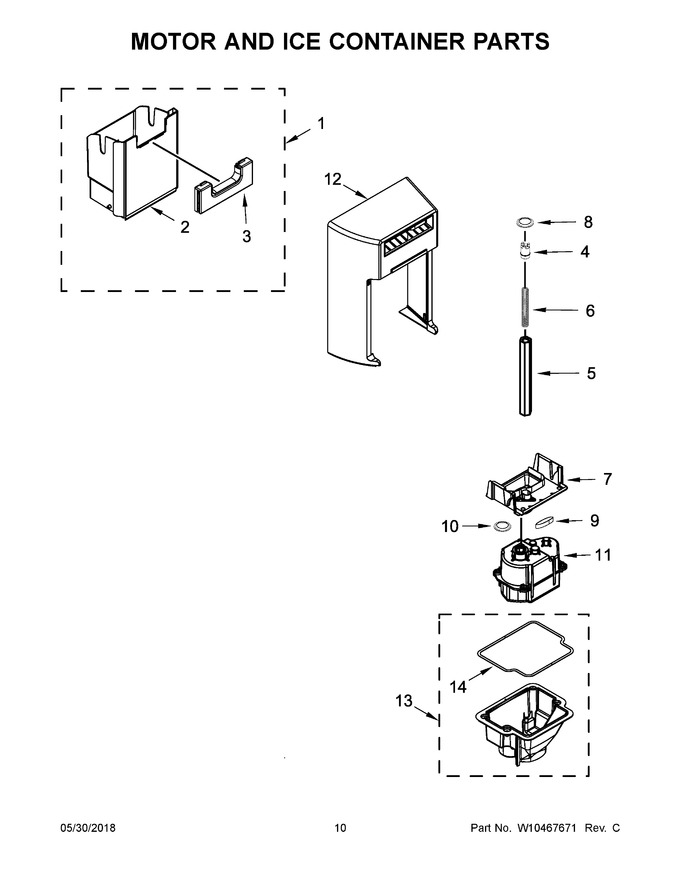

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Assembly, Ice Bin (Replaces: W10781441) |
|
Immediately | $ 362.91 | ||||
| 2 | W10859386 | Bin, Ice (Replaces: W10781442) |
|
$ 230.11 | |||||
| 3 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 24.98 | ||||
| 4 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 5 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 6 | W10852956 | Spring, Coupling (Replaces: W10754509) |
|
Immediately | $ 21.40 | ||||
| 7 | W11573761 | Assembly, Mounting Plate (Replaces: W10293211) |
|
Immediately | $ 62.92 | ||||
| 8 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 9 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 10 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 25.35 | |||||
| 11 | W11202789 | Motor, Dispenser (Replaces: W10225313) |
|
Immediately | $ 235.12 | ||||
| 12 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 229.19 | |||||
| 13 | W11678273 | Assembly, Motor Box (Replaces: W10765378) |
|
Immediately | $ 77.02 | ||||
| 14 | W10166854 | Gasket |
|
$ 26.69 |
