SELECT A DIAGRAM

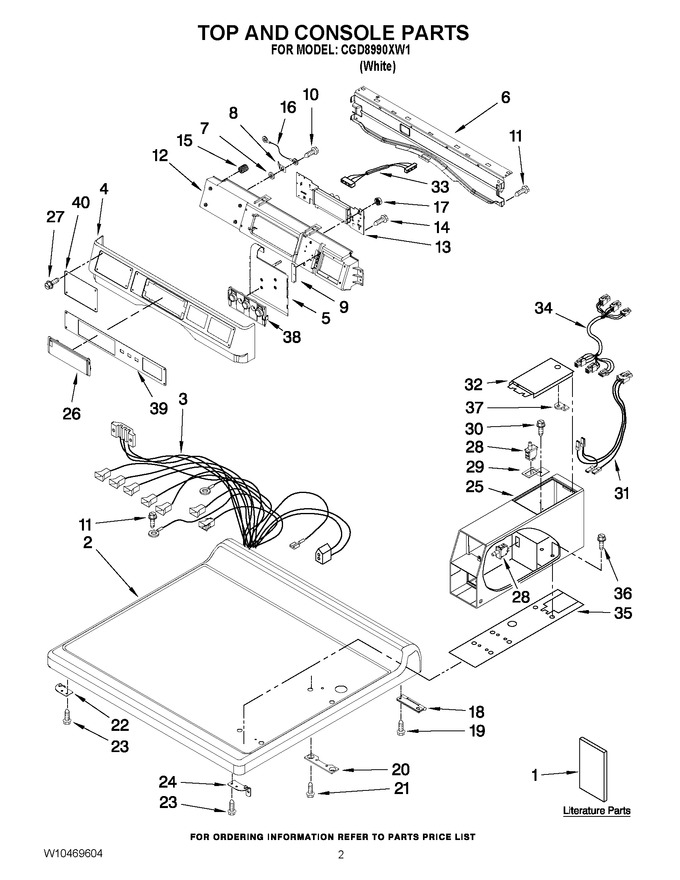

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184516		Installation Instruction		Appelez-nous	-
1	W10166378		Tech Sheet		Appelez-nous	-
1	W10469604		Parts List		Appelez-nous	-
2	WPW10137411		Top   (Replaces: W10137411)				$ 390.48
3	W10337045		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 132.04
5	WPW10135255		Membrane Switch & Backer Plate Assy.   (Replaces: W10135255)				$ 208.96
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
7	W10189075		Washer, Brass				$ 18.22
8	3373818		Tab-grounding		Appelez-nous	-
9	W10187276		Seal, Console		Appelez-nous	-
10	WP488234		Screw 8-32 X 1/4   (Replaces: 488234)				$ 6.74
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
13	WPW10166386		User-interface Assembly   (Replaces: W10166386)				$ 233.94
14	489136		Screw, 3-24 X 1/32				$ 10.29
15	WPW10189313		Insert   (Replaces: W10189313)				$ 8.79
16	W10188087		Ground Wire Assembly		Appelez-nous	-
17	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.79
18	WP8565018		Hinge & Pin Assembly   (Replaces: 8565018)				$ 109.85
19	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
20	3347825		Plate-mounting		Appelez-nous	-
21	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
22	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
23	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
24	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
25	WPW10171132		Meter Case   (Replaces: W10171132)				$ 235.54
26	W11637765		Display Cover   (Replaces: W10267645)				$ 66.28
27	WPW10137457		Screw, 8-32 X 3/64   (Replaces: W10137457)				$ 6.94
28	WPW10131838		Switch, Vault & Service Door   (Replaces: W10131838)				$ 23.91
29	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
30	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 7.50
31	W11096090		Wire, Harness Service Switch   (Replaces: W10211244)				$ 12.76
32	W11283272		Service Door Assembly   (Replaces: 3351136)				$ 105.88
33	W10166307		Harness, Communication				$ 39.35
34	W10166308		Harness, Meter Case		Appelez-nous	-
35	W10137448		Cushion, Meter Case		Appelez-nous	-
36	W11715721		Screw, 5/16 X 1.00   (Replaces: 3349065)				$ 7.12
37	W11401086		Cam-lock   (Replaces: W10156125)				$ 6.17
38	W10803340		Push Button   (Replaces: W10137455)				$ 117.38
39	W10334890		Fascia, Console		Appelez-nous	-
40	W10137462		Fascia-dispenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
