| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

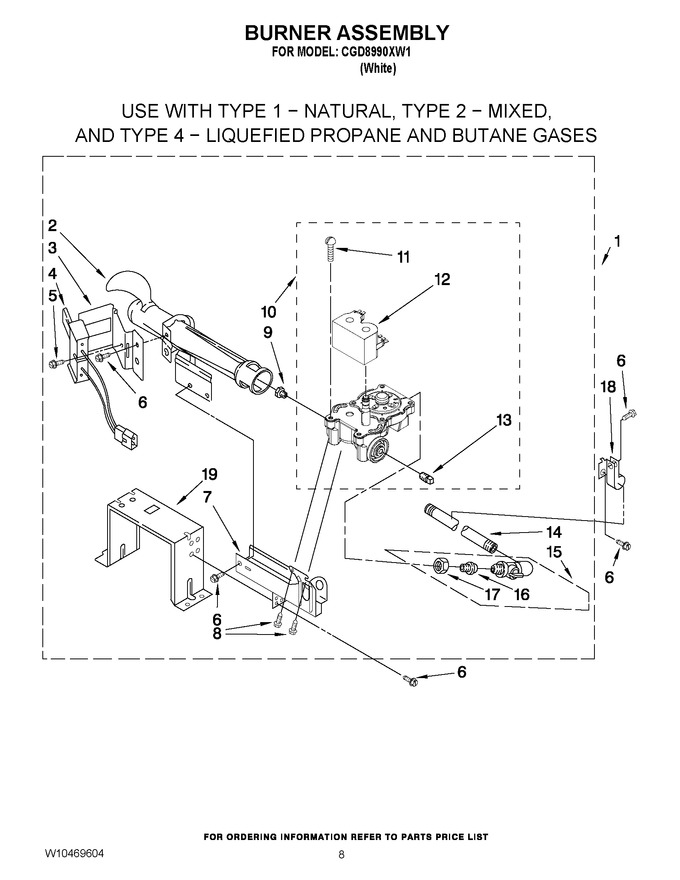

| 1 | W11676916 | Burner Assembly 60 Hz. (type 1, 2 & 3) (copreci) (Replaces: W10400668) |
|
$ 251.18 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 179.88 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 25.92 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw & Washer (8-32 X 5/8) (Replaces: 3393909) |
|
$ 7.50 | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 79.29 | |||||
| 8 | WP693995 | Screw, 10-16 X 1/2 (Replaces: 3387057) |
|
Immediately | $ 7.19 | ||||
| 9 | WP234868 | Orifice, Burner (type 2) (Replaces: 234868) |
|
$ 34.85 | |||||
| 9 | 234870 | Orifice, Burner (type 1) |
|
$ 123.13 | |||||
| 10 | W11676916 | Valve, Gas 60 Hz. (complete) (Replaces: W10299939) |
|
$ 251.18 | |||||
| 11 | 326049536 | Screw, Coil |
|
- | |||||
| 12 | WPW10328463 | Coil, 60 Hz. (Replaces: W10328463) |
|
Immediately | $ 79.02 | ||||
| 13 | W10295523 | Plug, Pipe |
|
- | |||||
| 14 | W10110395 | Pipe, Gas Supply |
|
- | |||||
| 15 | 697441 | Valve & Union Shut-off |
|
- | |||||
| 16 | 3393767 | Pipe, Tail |
|
$ 137.74 | |||||
| 17 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 18 | 3387561 | Clamp-pipe |
|
- | |||||
| 19 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| NI | W10436933 | Conversion Kit (type 1 And 2) To Type (4) L.p.g. (Replaces: W10436933RE) |
|
$ 60.26 |
