SELECT A DIAGRAM

01 - Top And Console Parts

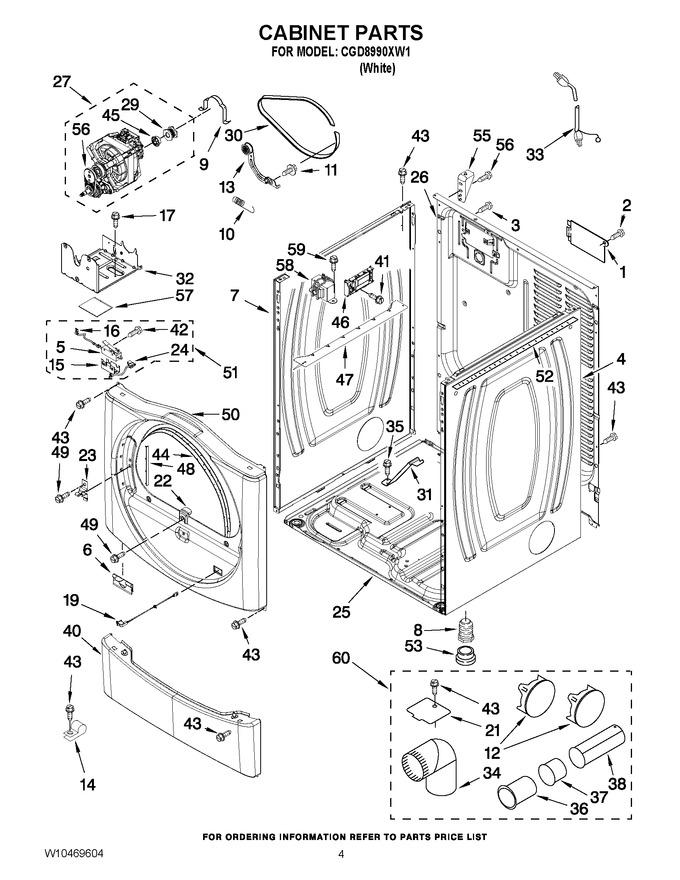

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 333.89
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 333.89
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 71.98
13	WPW10344192		Idler Assembly   (Replaces: W10344192)			Immediately	$ 90.07
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	8564011		Bracket-switch				$ 18.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
19	W10128087		Assembly, Door Switch				$ 90.98
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.96
22	8580015		Ramp, Door				$ 84.04
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
24	8539892		Wire-motor To Belt Switch		Appelez-nous	-
25	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 347.96
26	8565059		Panel, Rear				$ 244.90
27	W11234001		Motor Assembly 60 Hz.   (Replaces: W10396034)			Immediately	$ 413.21
29	WP8066184		Pulley 60 Hz   (Replaces: 3394341)			Immediately	$ 51.02
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	W11222083		Cord, Power   (Replaces: W10440461)				$ 120.59
34	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 26.82
35	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
40	WP8540621		Toe Panel   (Replaces: 8540621)				$ 180.36
41	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
42	777849		Screw, 6-20 X 1.00   (Replaces: W10002600)				$ 7.01
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 132.46
46	WPW10166305		Control Board   (Replaces: W10166305)				$ 184.67
47	WP8563727		Control Bracket   (Replaces: 8563727)				$ 171.13
48	8565043		Plug, Strip Front Panel				$ 92.66
49	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	WPW10117421		Front Panel (includes Item, 44 )   (Replaces: W10117421)				$ 283.08
51	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
52	WP8318396A		Foam-seal (iec)   (Replaces: 8318396)				$ 37.82
53	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
55	W10137398		Stop, Top Panel		Appelez-nous	-
56	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 35.23
57	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 22.18
58	WPW10131839		Transformer 120 To 22.5 Vac   (Replaces: W10131839)			Immediately	$ 133.55
59	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: W10331132)				$ 72.20

    View Diagram in Separate Window       Print Part List
