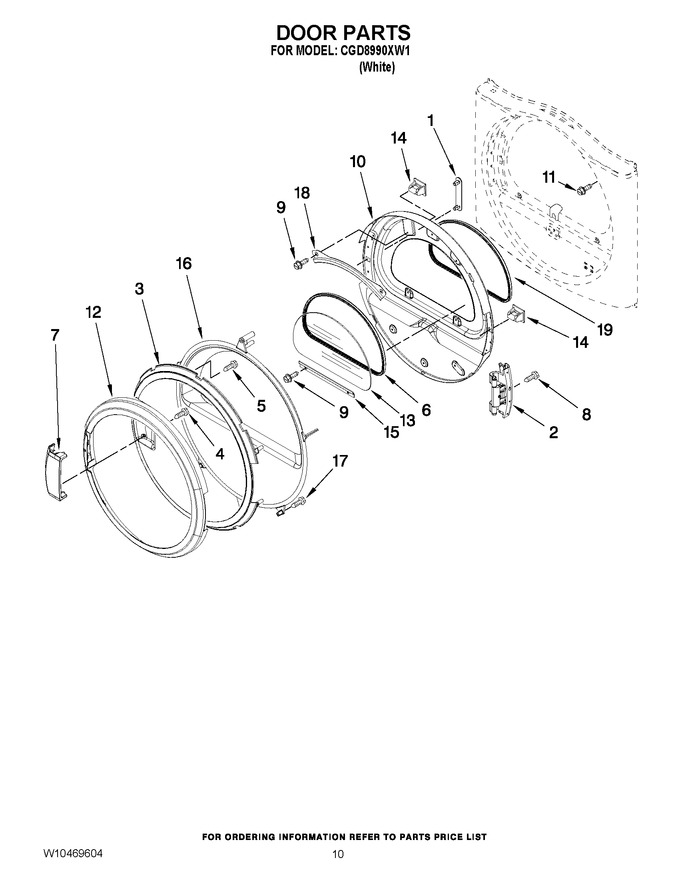

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565119 | Label, Hinge Hole Cover (inner Door) |
|
$ 93.64 | |||||
| 2 | WPW10304672 | Door Hinge Assembly (Replaces: W10304672) |
|
Immediately | $ 221.41 | ||||
| 3 | W10137473 | Door Screen Intermediate Assy. (rotational) |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 5 | 3400618 | Screw, 6-32 X 3/8 |
|
$ 64.70 | |||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 26.88 | |||||
| 7 | W10850397 | Handle, Door (Replaces: W10112976) |
|
$ 34.76 | |||||
| 8 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 7.68 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.68 | |||||
| 10 | W11690171 | Door Assembly (inner) (include Items, 1 & 14 ) (Replaces: W10363674) |
|
$ 194.75 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.67 | |||||
| 12 | W11661105 | Door, Outer Ring (Replaces: W10112916) |
|
$ 171.10 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 261.68 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 15 | W10822054 | Retainer-lower (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 16 | W10137471 | Door, Intermediate (stationary) |
|
- | |||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 18 | 8519356 | Retainer, Upper |
|
- | |||||
| 19 | WPW10163915 | Door Seal (Replaces: W10163915) |
|
Immediately | $ 87.42 |
