SELECT A DIAGRAM

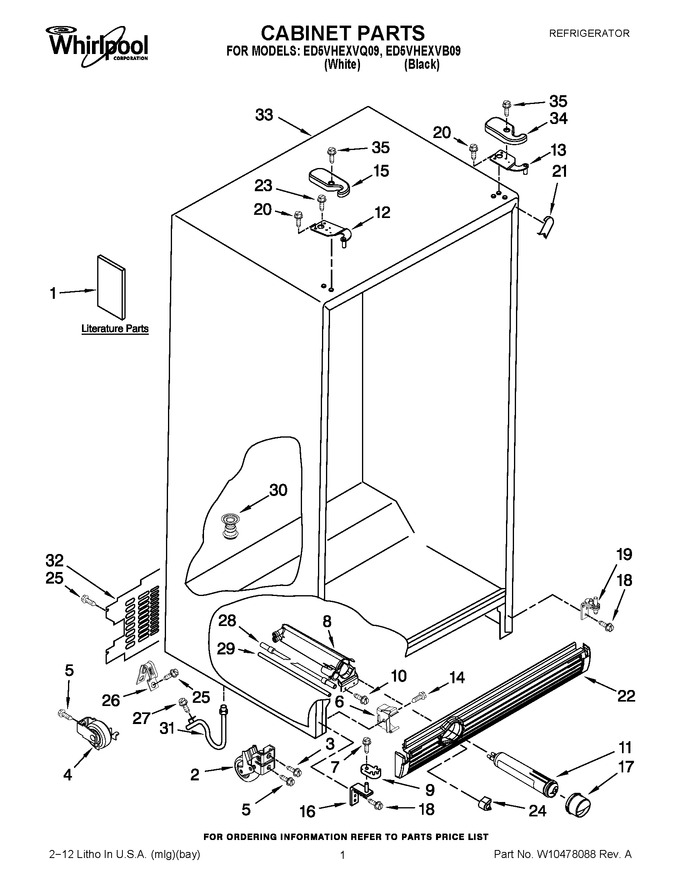

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10316634		Use & Care Guide		Appelez-nous	-
1	W10207987		Service & Wiring Sheet		Appelez-nous	-
1	W10312810		Energy Guide		Appelez-nous	-
1	W10305231		Instruction Sheet, Door Removal		Appelez-nous	-
2	2174748		Front Roller		Appelez-nous	-
3	W10850698		Screw 5/16 X 1.440   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Rear Roller   (Replaces: W10250570)				$ 40.17
5	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489483		Screw 10-32 X 1/2   (Replaces: 489483)				$ 10.87
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	WPW10329686		Door Closer   (Replaces: 2155311)			Immediately	$ 5.43
10	WP489500		Screw 10-32 X 5/8   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	W10242650		Hinge, Top (fc)		Appelez-nous	-
13	W10242649		Hinge, Top (rc)		Appelez-nous	-
14	WPW10141604		Screw 8-32 X 3/8   (Replaces: W10141604)				$ 8.43
15	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
15	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
16	W10138965		Hinge, Bottom (fc)				$ 89.44
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
17	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
18	WP489497		Screw 12-24 X .818   (Replaces: W10142235)			Immediately	$ 29.09
19	W10219817		Hinge, Bottom (rc)		Appelez-nous	-
20	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
21	2304846		Filler, Wrapper (white)		Appelez-nous	-
21	2304848		Filler, Wrapper (black)		Appelez-nous	-
22	WPW10311032		Grille (white)   (Replaces: W10311032)				$ 161.58
22	WPW10311033		Grille (black)   (Replaces: W10311033)				$ 176.10
23	WP489128		Screw 8-32 X 3/8   (Replaces: 8281149)				$ 10.88
24	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
25	WPW10141645		Screw 8-15 X 1/2   (Replaces: W10141645)				$ 7.67
26	549193		Clamp, Service Cord				$ 13.39
27	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 7.83
28	W10281289		Tube, Filter Inlet				$ 57.80
29	WPW10350006		Tube, Filter Outlet   (Replaces: W10330344)				$ 115.54
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
32	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
33	N/P		Cabinet (not Serviced)		Appelez-nous	-
34	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
34	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
35	WP8281227		Screw 8-32 X 1/2   (Replaces: 8281227)				$ 10.44
