Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not Serviced) Appelez-nous -
2 2257741 Louver Appelez-nous -
3 W11239891 Light Lens   (Replaces: W10242623) Special Order $ 101.52

4 WP488488 Screw 8-18 X 1/2   (Replaces: 489290) Special Order $ 8.52

5 W10141518 Screw 8-15 X 3/4 Special Order $ 9.54

6 2311612 Clip, Control Box Appelez-nous -
7 WPW10151374 Air Diffuser Assy   (Replaces: W10151374) In-Stock Immediately $ 104.77

8 2152019 Air Diffuser Cover Special Order $ 90.33

9 2150331 Cover, Conduit Special Order $ 25.62

10 W10759522 Screw 8-15 X 3/4   (Replaces: W10004810) Special Order $ 8.24

11 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

12 WPW10276792 Reservoir Tubing   (Replaces: W10276792) Special Order $ 144.45

13 W11679940 Light Bulb   (Replaces: W10311505) In-Stock Immediately $ 11.30


    View Diagram in Separate Window     Print Icon   Print Part List

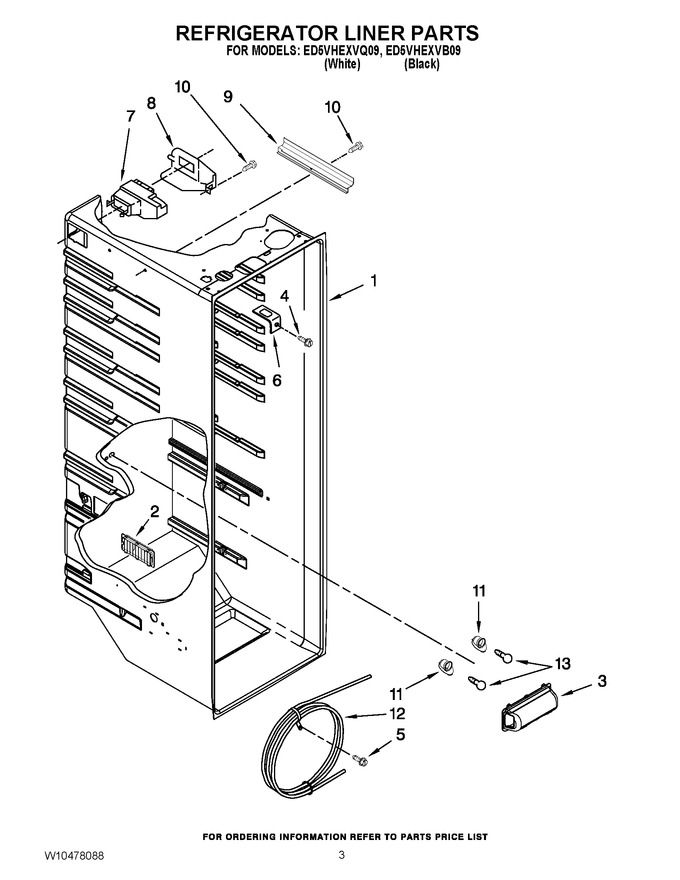

Diagram for ED5VHEXVB09
